Canon Image Reader-A1 iR5000i Service Manual page 298

CHAPTER 4 IMAGE FORMATION SYSTEM

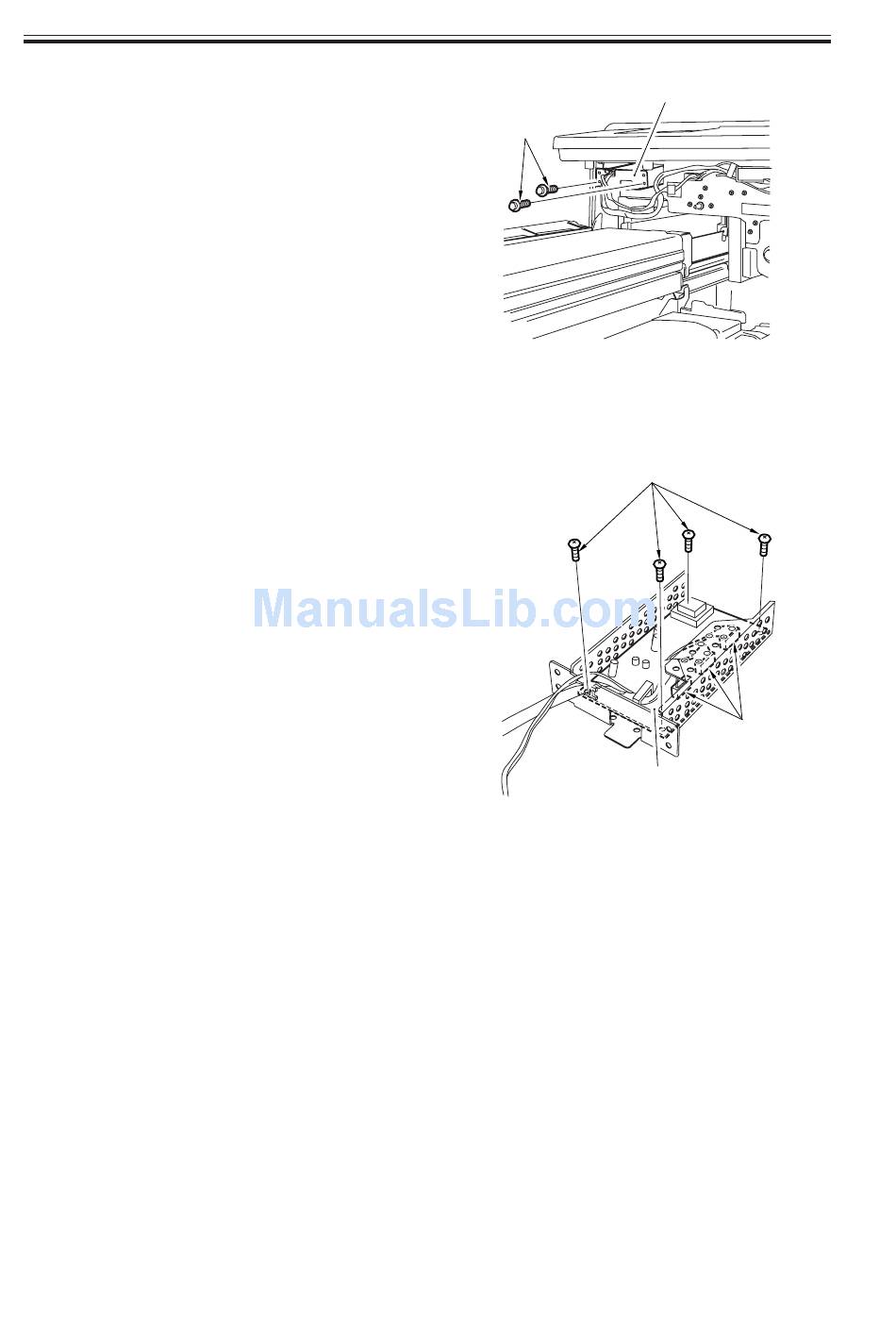

7) Remove the two screws [9], and detach
the potential control PCB together with
the mounting base [10].
8) Remove the four screws [11] and three
connectors [12], and detach the poten-
tial control PCB [13].
4-58 P
COPYRIGHT © 2001 CANON INC.
[9]
F04-704-04
F04-704-05
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[10]
[11]
[12]
[13]
