CHAPTER 8 PAPER DECK

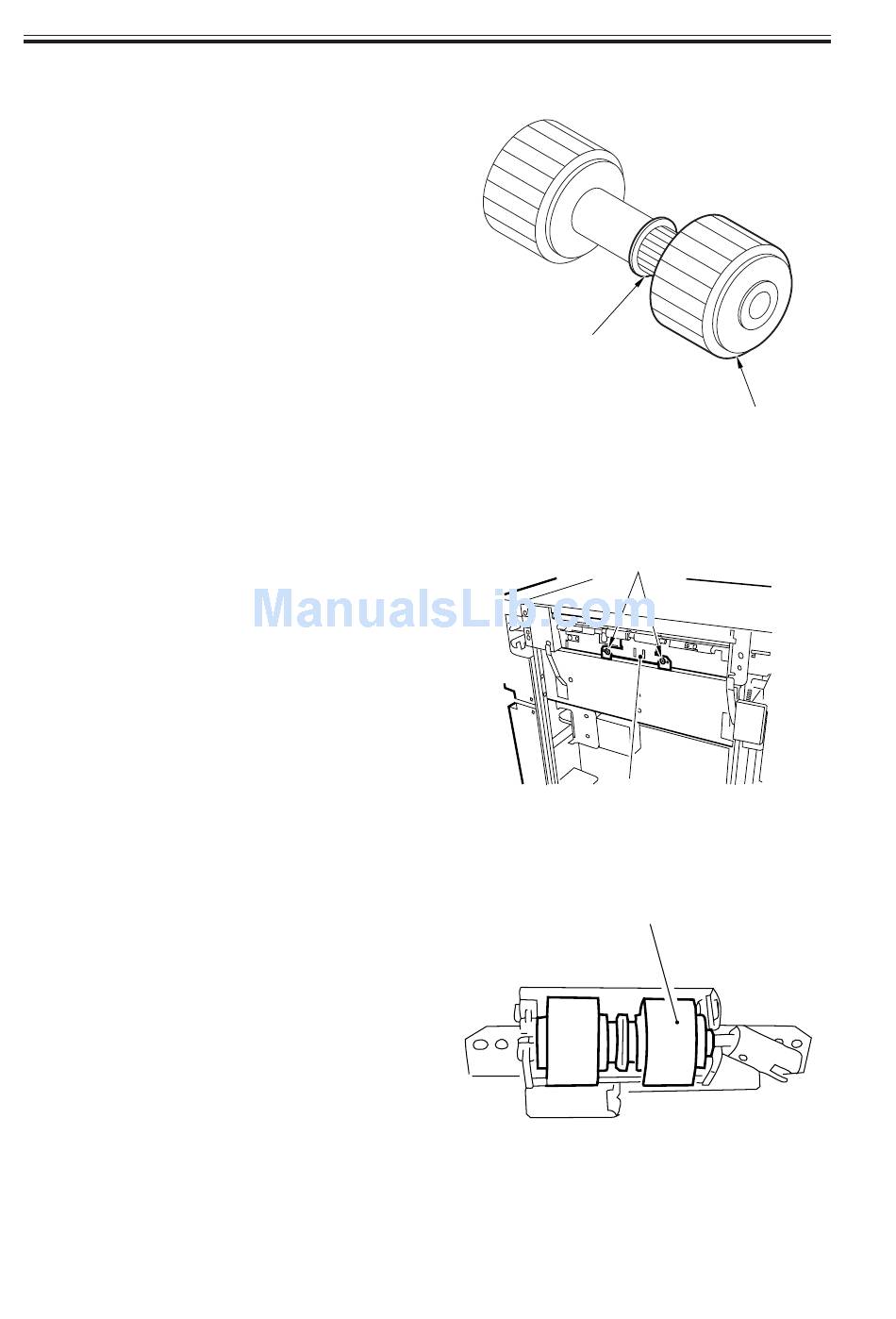

3.4.5 Orientation of the Deck Pickup/Feed Roller
When mounting the deck pickup/feeding
roller [1], be sure that the belt pulley [2] is
toward the front of the machine. The
pickup/feed roller rubber may be attached
to the pickup/feed roller shaft in any orien-
tation.
3.4.6 Removing the Deck Separation Roller
1) Disconnect the deck from the host ma-
chine; then, remove the two screws [1],
and detach the separation roller support
plate [2].
2) Remove the joint, and detach the deck
separation roller [3].
8-40 P
COPYRIGHT © 2001 CANON INC.
[2]
F08-304-07
F08-304-08
F08-304-09
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[1]
[1]
[2]
[3]
