CHAPTER 3 STANDARDS AND ADJUSTMENTS

4.5 Orientation of the Feeding Roller of the Side Paper Deck

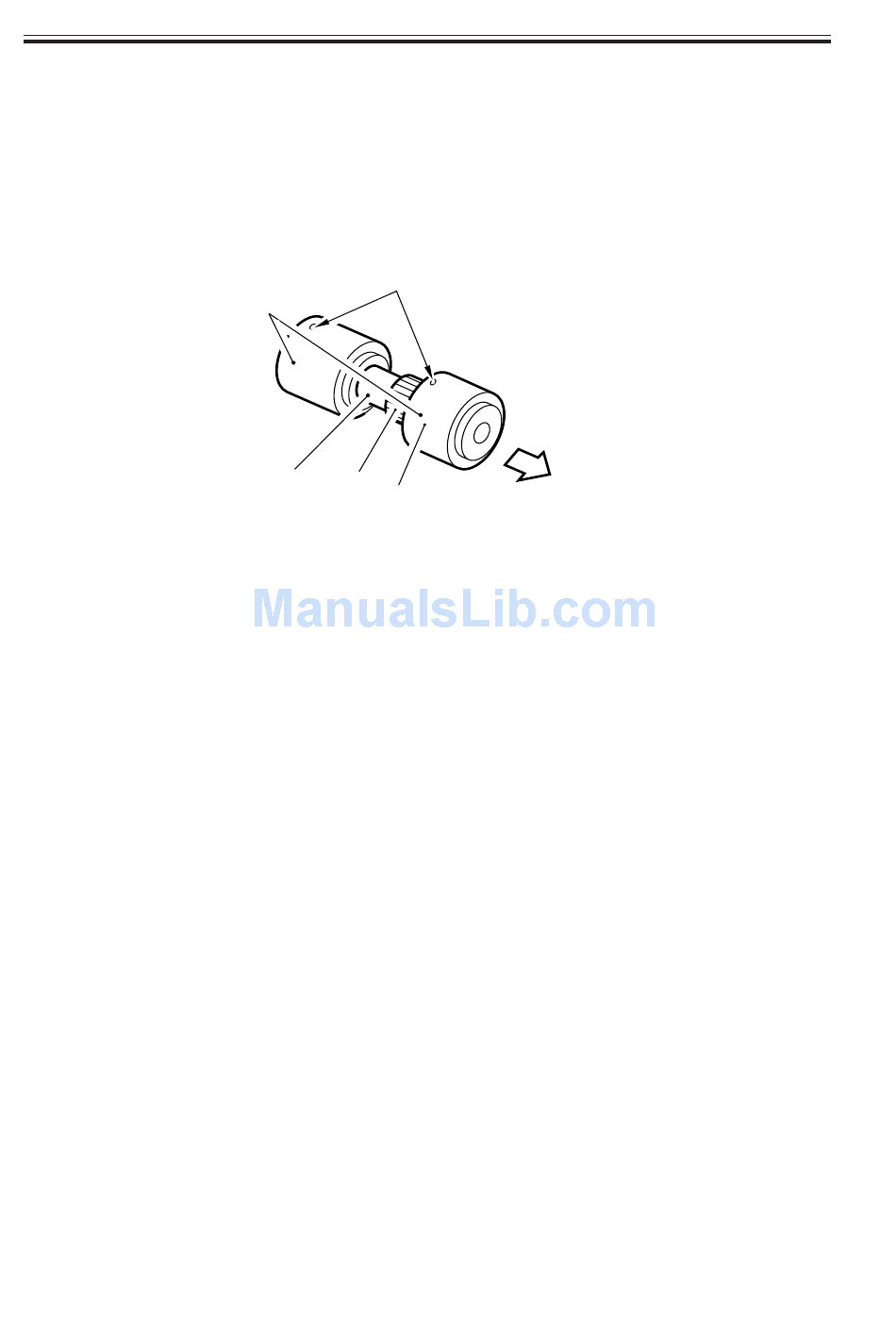

When mounting the feeding roller assembly [1] to the side paper deck, be sure that the
belt pulley [2] is toward the front of the machine. When mounting the feeding roller [3] to
the feeding roller shaft [4], be sure that the round marking [5] is toward the rear of the ma-
chine.
3-12 T
[5]
[3]
[4]
[2]
[1]
F03-405-01
COPYRIGHT © 2001 CANON INC.
(front)
