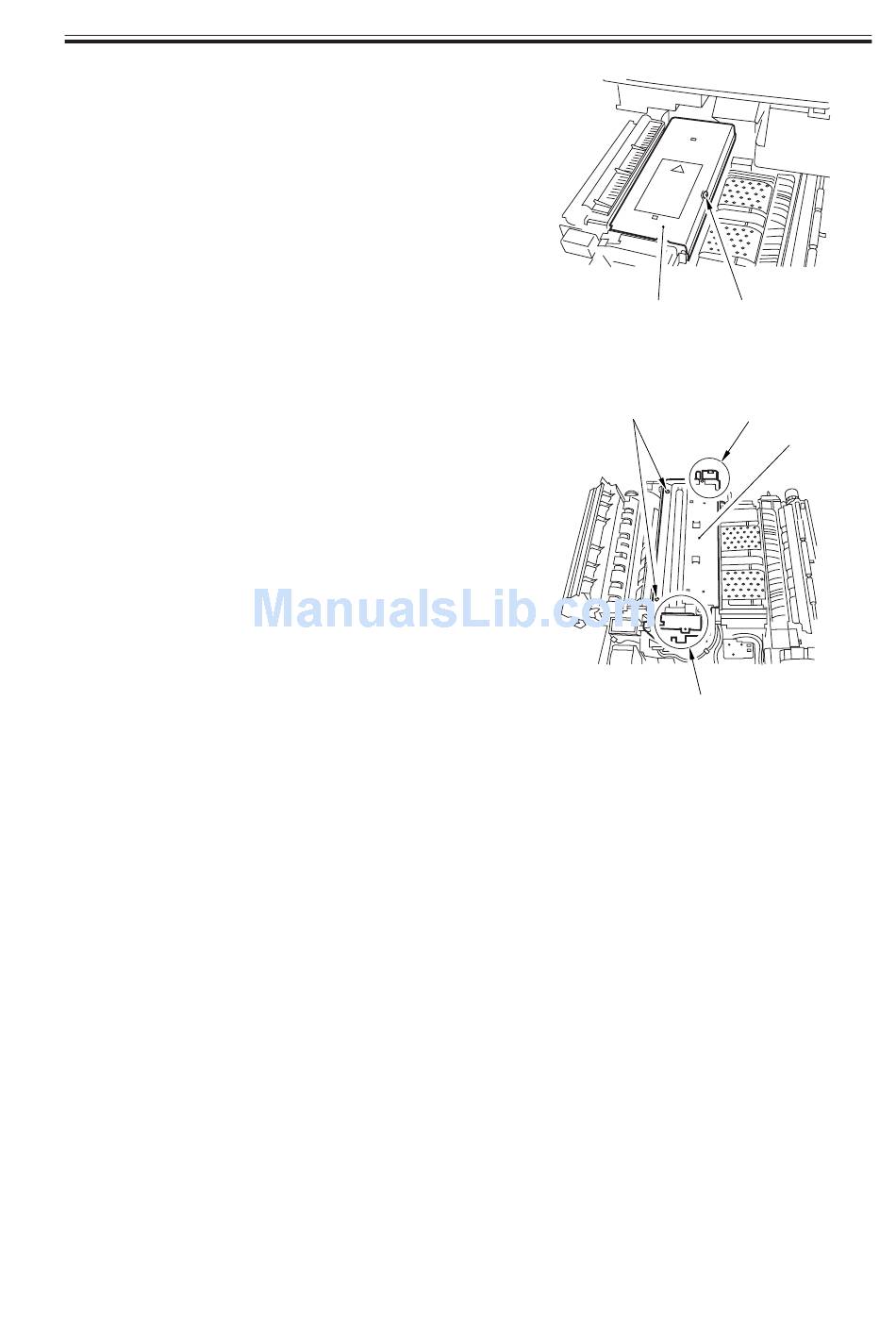

5) Remove the mounting screw [8], and
detach the cover [9].
6) Open the fixing delivery assembly, and
remove the two screws [10]; then, hold-
ing the front [12] and the rear [13] of
the fixing assembly [11], remove the
fixing assembly from the machine.
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 6 FIXING SYSTEM
[9]
[8]
F06-401-06
[10]
[13]
[12]
F06-401-07
[11]
