Canon Image Reader-A1 iR5000i Service Manual page 548

CHAPTER 8 PAPER DECK
3.4 Feeding Mechanisms

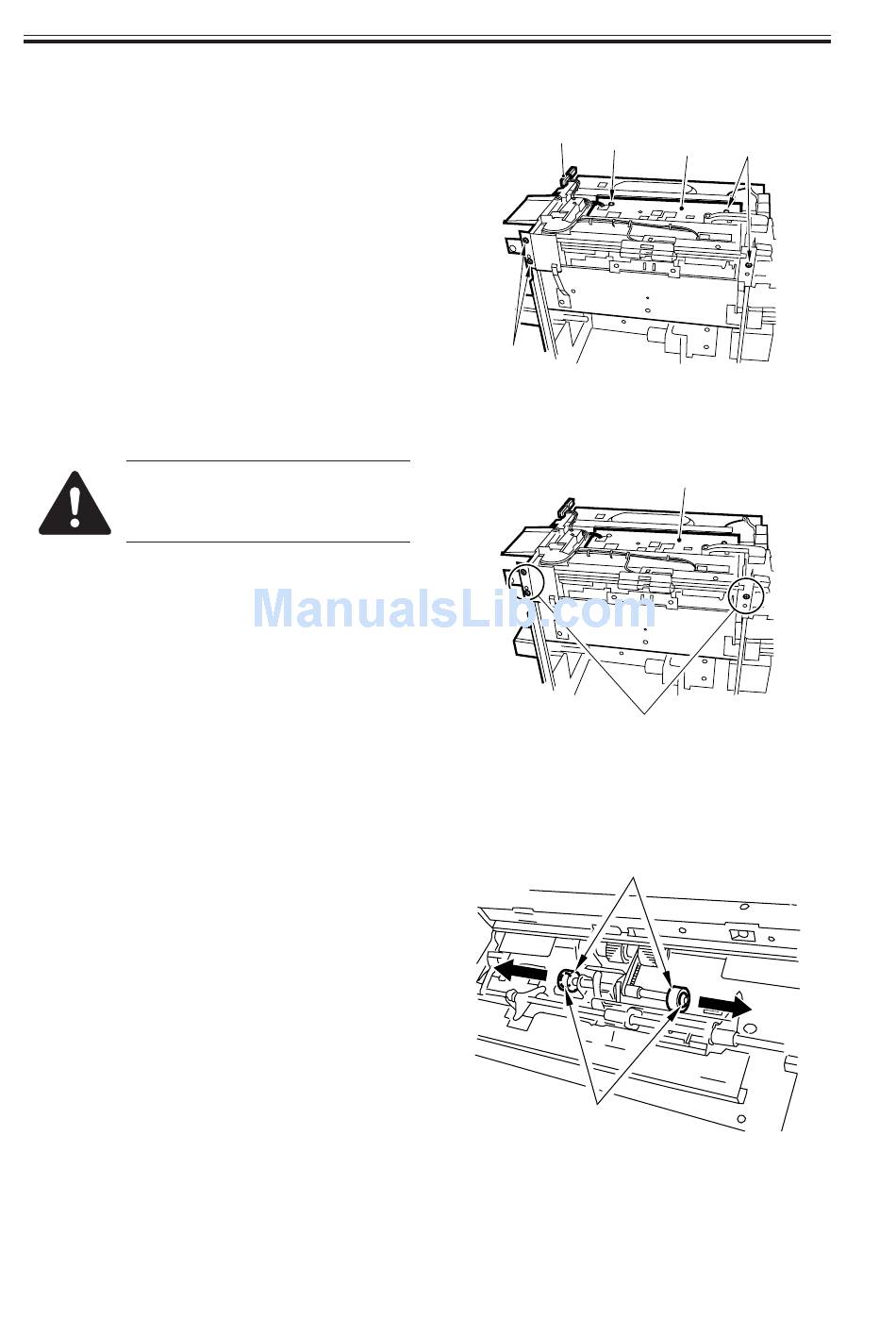

3.4.1 Removing the Deck Pickup Unit
1) Remove the upper cover. (see p. 8-24P.)
2) Disconnect the two connectors [1], and
remove the five screws [2].
3) Remove the deck pickup unit [3].
When mounting the deck
pickup unit [3], be sure to se-
cure the three screws shown.
3.4.2 Removing the Deck Pickup Roller
1) Remove the deck pickup unit. (See p. 8-
38P.)
2) Turn over the deck pickup unit, and re-
move the two resin rings [1]; then, de-
tach the deck pickup rollers [2].
8-38 P
COPYRIGHT © 2001 CANON INC.
[1]
[2]
[2]
F08-304-01
F08-304-02
[1]
F08-304-03
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[3]
[2]
[3]
Screws
[2]
