CHAPTER 3 INSTALLATION

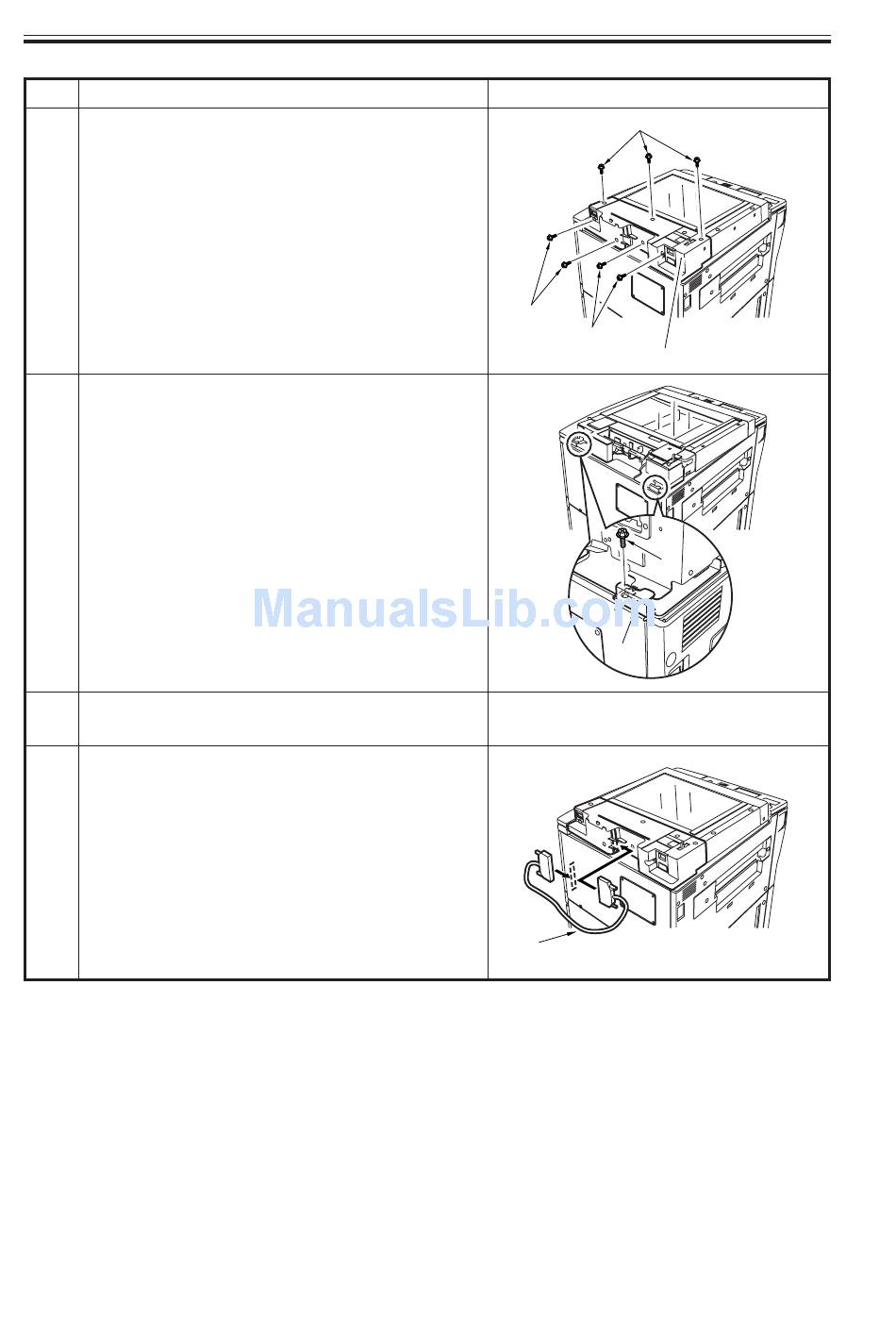

Step
5 Remove the seven mounting screws [5], and
detach the reader unit rear cover [6].
6 Mount the two reader unit fixings (rear) [7]
that come with the machine using an RS
tightening screw [8].
7 Mount the reader unit rear cover.
8 Mount the reader I/F cable [9] as shown.
3-8 S
Work
COPYRIGHT © 2001 CANON INC.
Checks/remarks
[5]
[5]
[9]
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[5]
[6]
[8]
[7]
