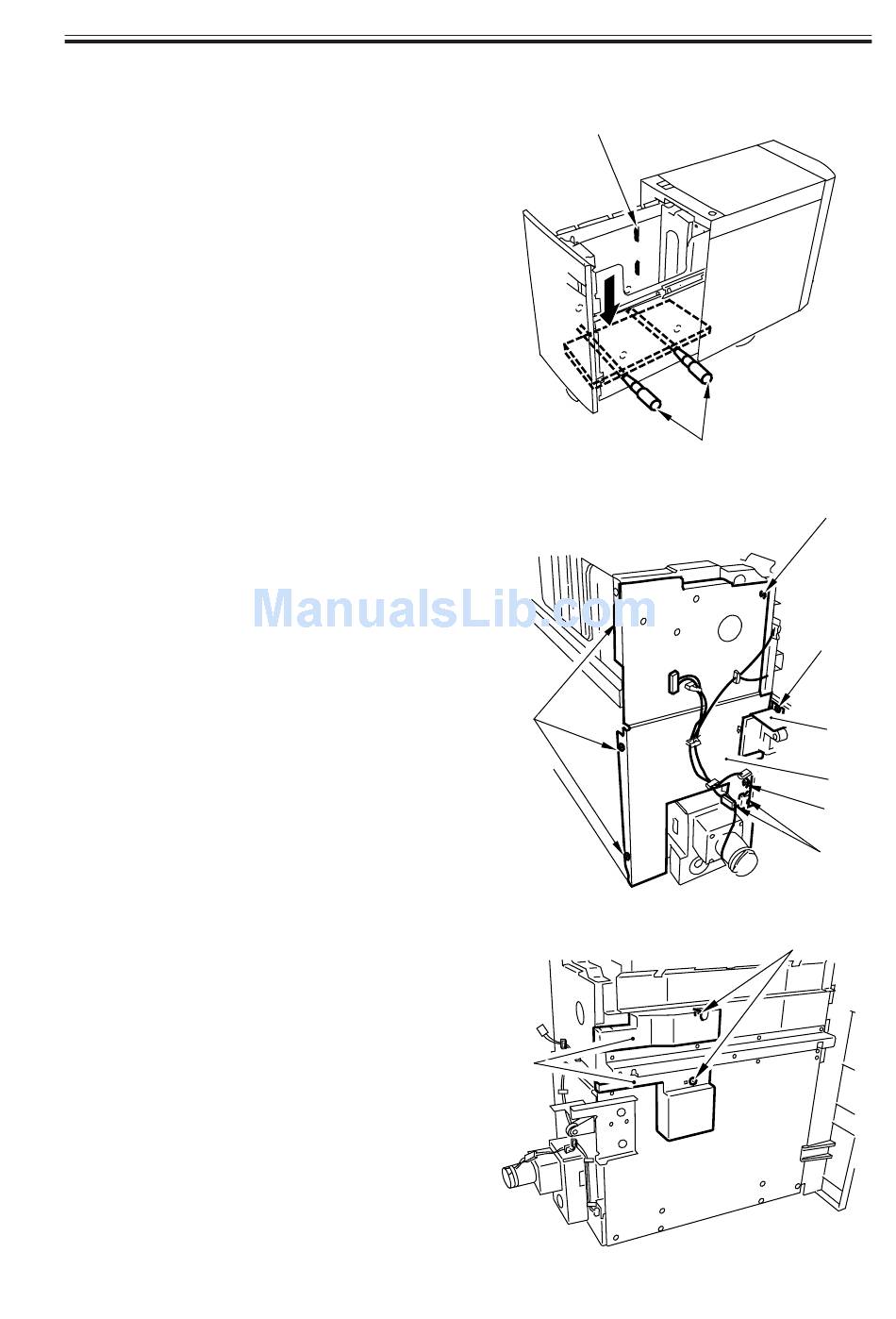

3.3.5 Removing the Lifter Cable (rear of the deck)
1) Open the compartment of the deck, and
remove all paper.
2) Remove the screw, and detach the paper
rear guide plate from inside the com-
partment.
3) Push the paper supply position sensor
[1] found inside the compartment with
your finger to move down the lifter until
the left/right hole in the compartment
side plate and the left/right hole in the
lifer match; then, insert two long screw-
drivers [2]. At this time, try matching
the top surface of the lifter with the
marking on the left side plate of the
compartment to facilitate the work.
4) Remove the compartment. (See p. 8-
27P.)
5) Remove the screw [3], and detach the
sensor plate [4].
6) Remove the screw [5], and detach the
upper/lower sensor cover [6].
7) Disconnect the five connectors [7], and
remove the five screws [8]; then, detach
the metal plate [9].
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 8 PAPER DECK
[1]
F08-303-09
[8]
F08-303-10
[6]
F08-303-11
[2]
[8]
[3]
[4]
[9]
[8]
[7]
[5]
8-35 P
