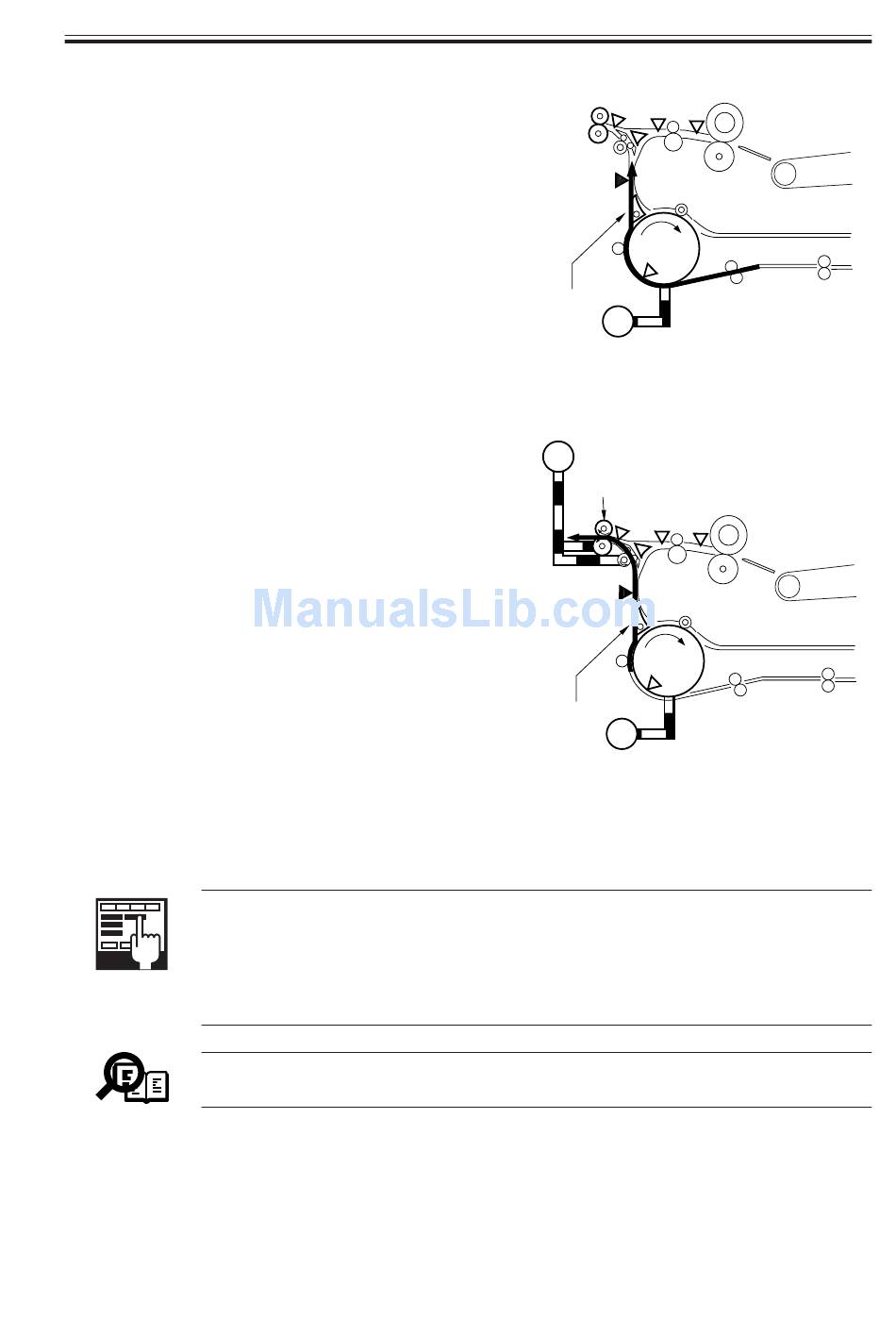

3) The reversal motor (M14) rotates once
again to move the paper in the direction
of delivery with the trailing edge of the
paper leading the way.
4) The reversal motor (M14) stops when
the external sensor (PS36) turns on and
the trailing edge of the paper moves
past the reversing roller. The fixing mo-
tor (M19) rotates, and the paper is de-
livered by the work of the external de-
livery roller.
COPIER>OPTION>BODY>TPR-DECL (switching delivery path to
improve stacking for delivering thick paper in face-down mode)
0: normal (default)
1: causes paper to pass over the reversing roller for delivery (face-down)
after de-curling
In thick paper mode, the paper is moved over the reversing roller to remove
its curl.
Memo
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 5 PICK-UP/FEEDING SYSTEM
Point of reversal
PS46
Reversing flapper
M14
F05-601-03
M19
External
delivery roller
PS36
Point of
reversal
Reversing flapper
M14
F05-601-04
PS37
PS37
PS37
5-39 P
