CHAPTER 2 ORIGINAL EXPOSURE SYSTEM

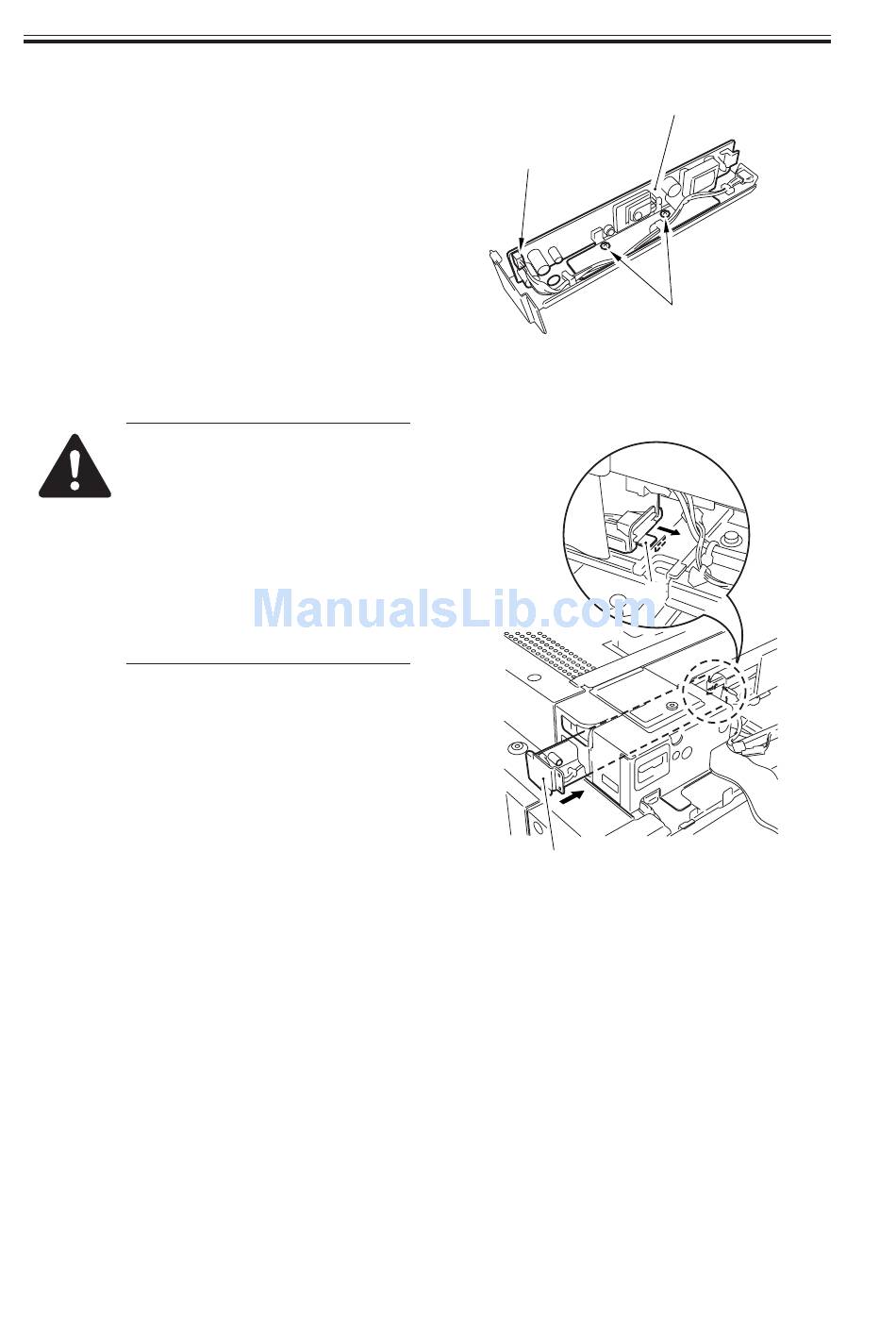

6) Remove the two screws [7], and discon-
nect the connector [8]; then, detach the
inverter PCB [9].
Points to Note When Mounting
the Inverter PCB
When fitting the inverter PCB
[1] into the reader frame, be
sure to fit the leading edge [2]
of the frame of the inverter PCB
into the mounting hole in the
reader frame.
2-30 R
COPYRIGHT © 2001 CANON INC.
[8]
F02-802-04
[1]
F02-802-05
2000 2000 2000 2000
CANON iR5000i/iR6000i REV.0 JUNE 2001
[9]
[7]
[2]
