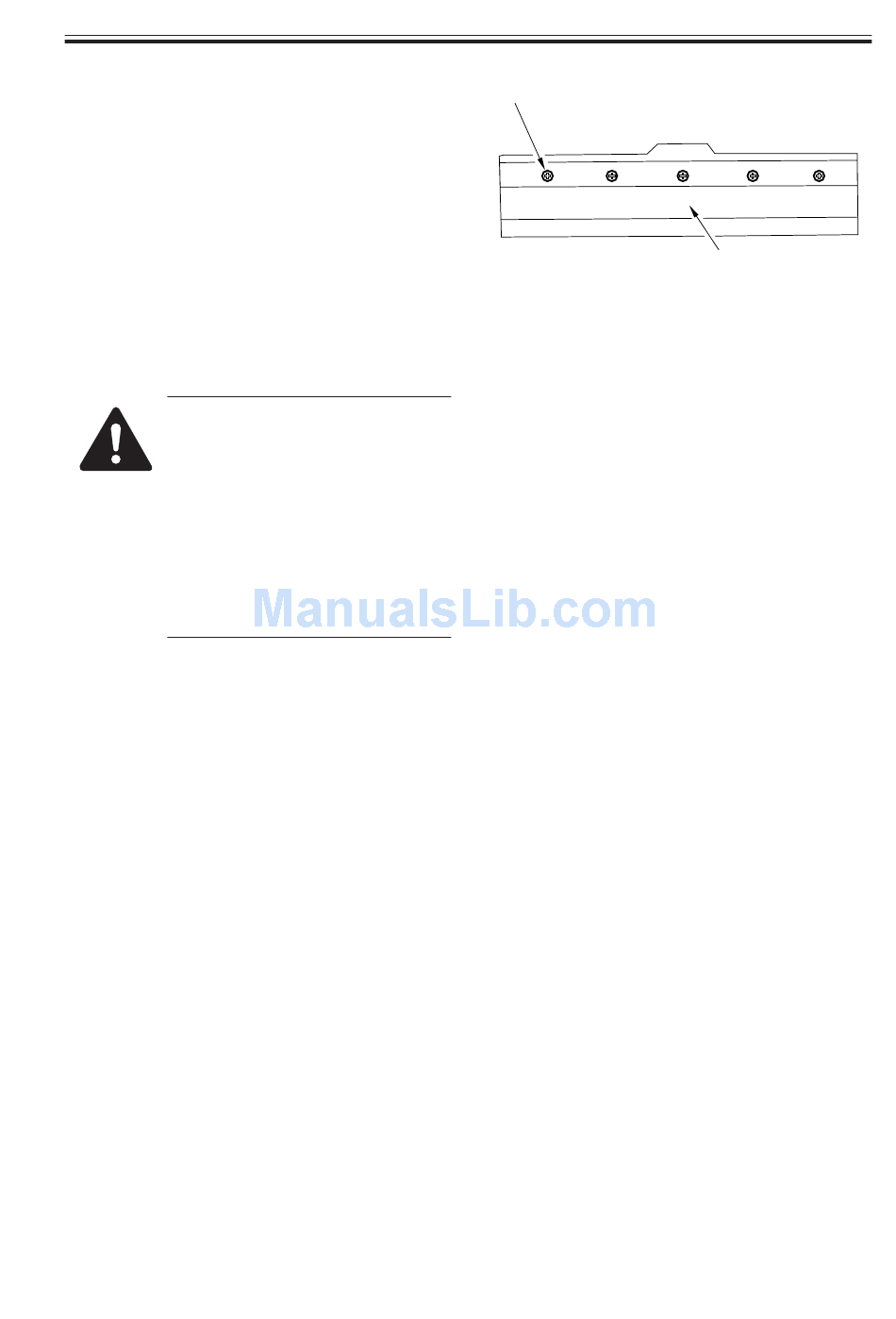

2) Tighten the five mounting screws [3]
lightly, stopping to turn them when re-
sistance is felt.
3) Turn the screws tightened lightly in step
2) about 20° to 30° in the order indi-
cated, tightening them fully.
After mounting the cleaning
blade, check to make sure that
the edge of the blade is not ap-
preciably bent.
Further, be sure to clean the
groove in the blade support
plate before mounting the blade,
as toner or the like in the groove
can start to bend the blade.
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 4 IMAGE FORMATION SYSTEM
[3]
5 3
F04-711-07
1 2 4
order of tightening
4-81 P
