CHAPTER 3 STANDARDS AND ADJUSTMENTS

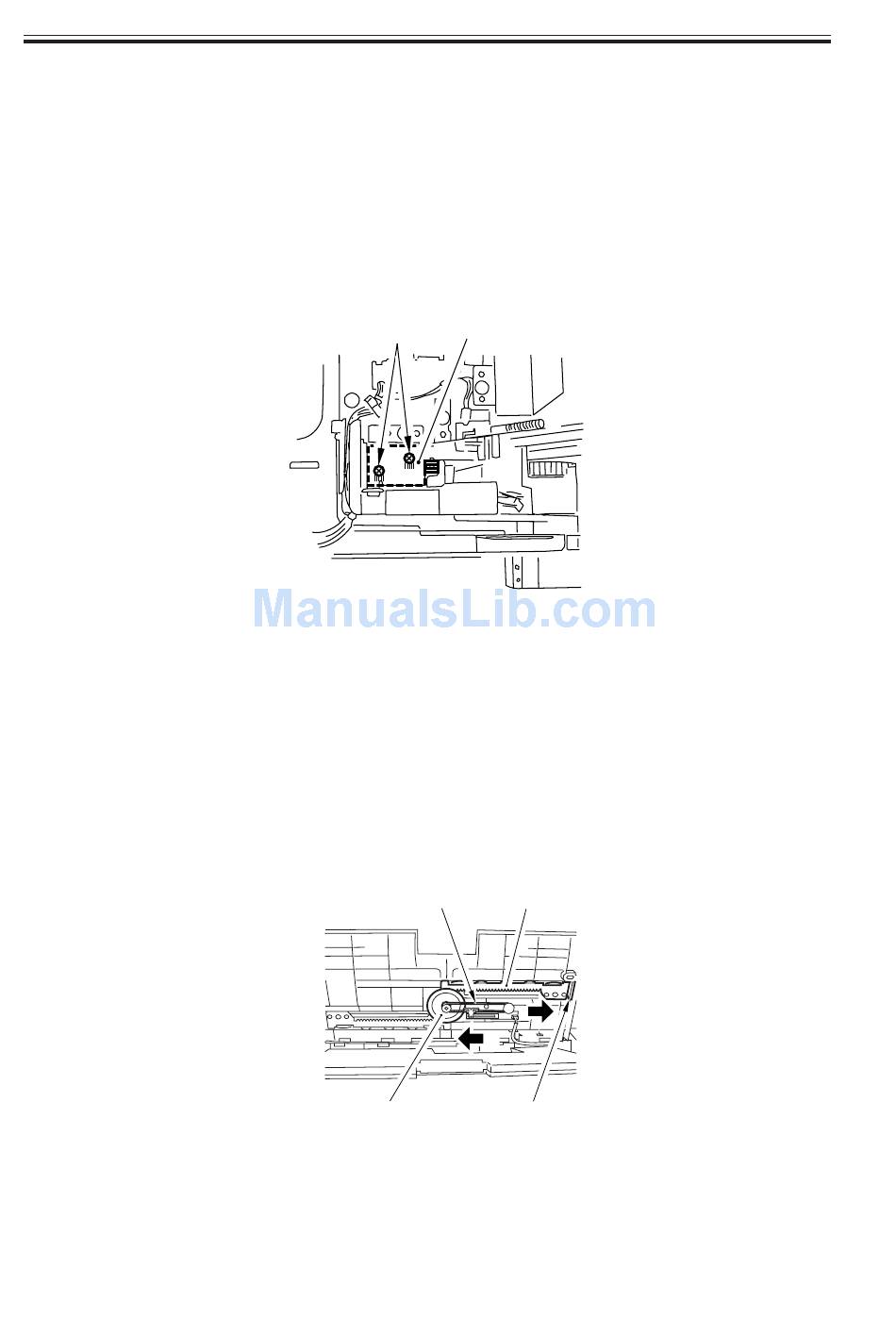

4.15 Position of the Side Paper Deck Pickup Roller Releasing
Solenoid
Before removing the deck pickup roller releasing solenoid [1] from the support plate, take
note of the position of the two fixing screws [2] of the solenoid with reference to the index
on the support plate. Or, draw a line on the support plate so that it will serve as a reference
when positioning the solenoid.
When mounting the solenoid on its own, be sure to secure it in its original position.
4.16 Attaching the Timing Belt of the Manual Feed Tray
Assembly
1) Butt the rack plate [1] of the manual feed tray against A (open state).
2) Move the slide volume in the direction of B, and attach the timing belt [2] to the pulley
[3].
3-20 T
[2]
F03-415-01
[3]
F03-416-01
COPYRIGHT © 2001 CANON INC.
[1]
[2] [1]
B
A
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
