4.7.4 Removing the External Delivery Sensor
1) Remove the fixing/feeding unit from the
machine.
2) Remove the external delivery roller.

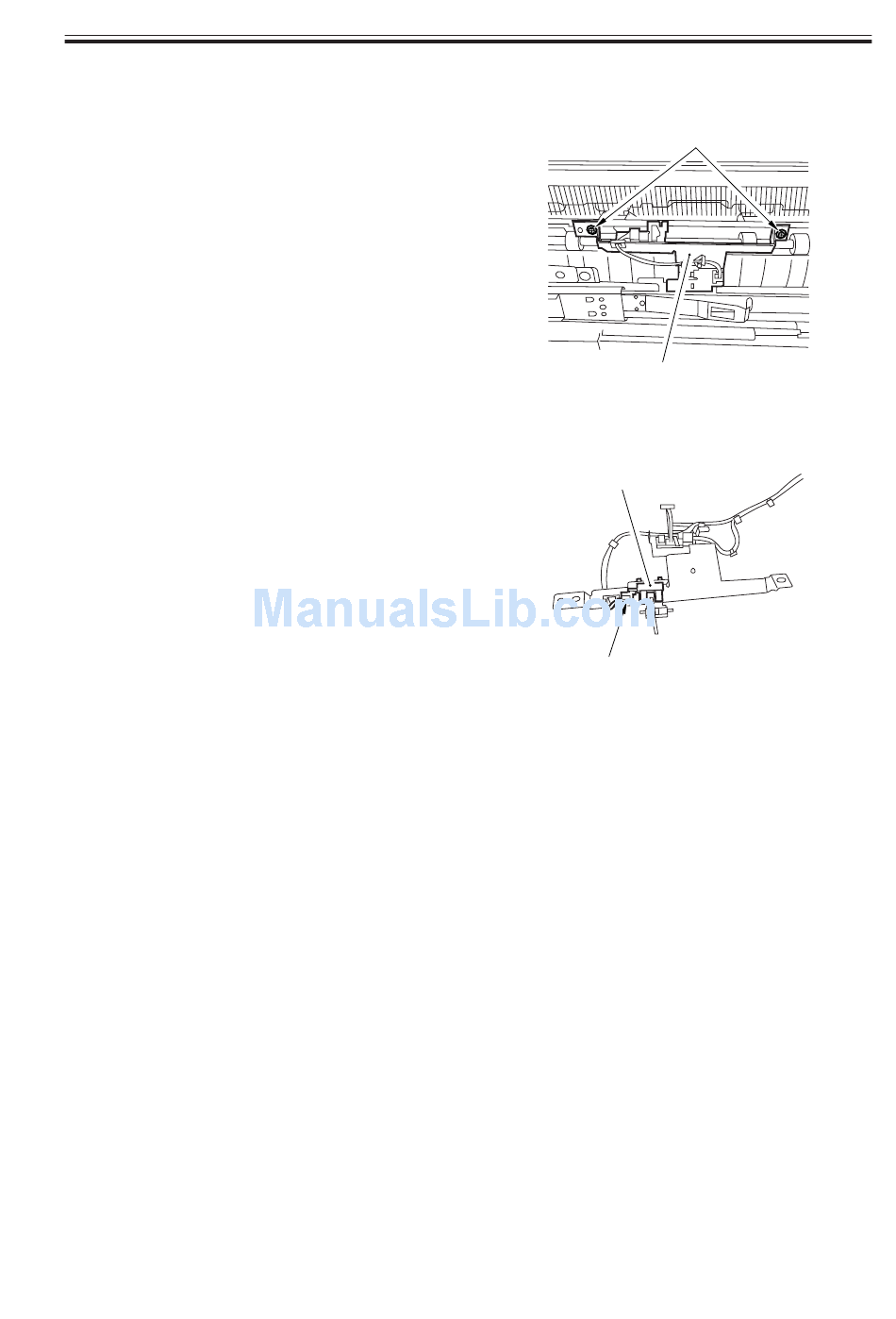

3) Remove the two sensors [1], and detach
the sensor support plate [2].
4) Disconnect the connector [3], and de-
tach the external delivery sensor [4].
