CHAPTER 2 ORIGINAL EXPOSURE SYSTEM

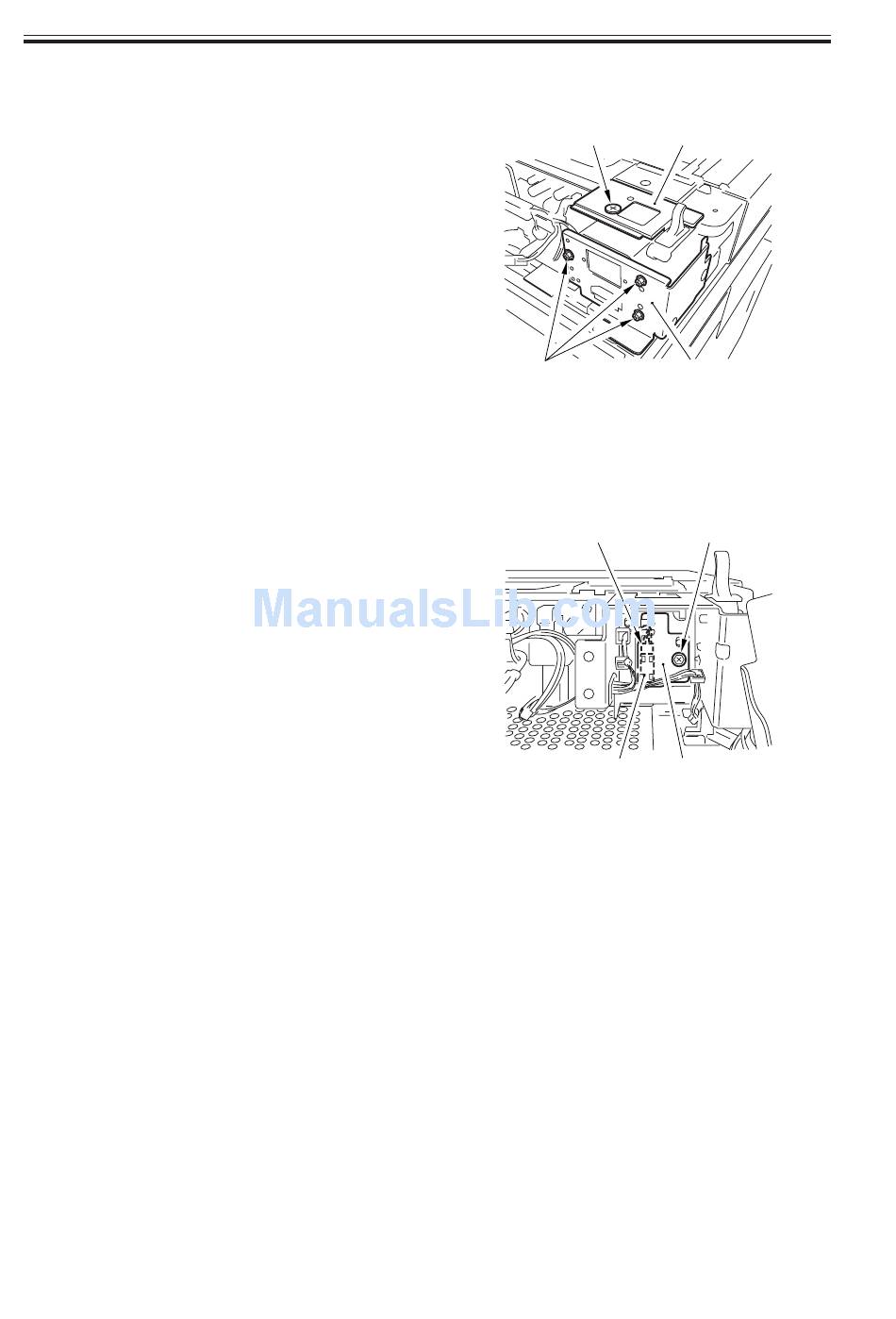

7.2 Removing the HP Sensor

1) Remove the ADF unit from the reader
unit.
2) Remove the reader rear cover.
3) Remove the screw [1], and detach the
ADF base (left) [2].
4) Remove the three screws [3], and detach
the fuse base [4].
5) Remove the screw [5], and detach the
sensor base [6]; then, disconnect the
connector [7], and detach the HP sensor
[8] from the base.
2-26 R
COPYRIGHT © 2001 CANON INC.
[1]
[3]
F02-702-01
[7]
F02-702-02
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[2]
[4]
[5]
[8] [6]
