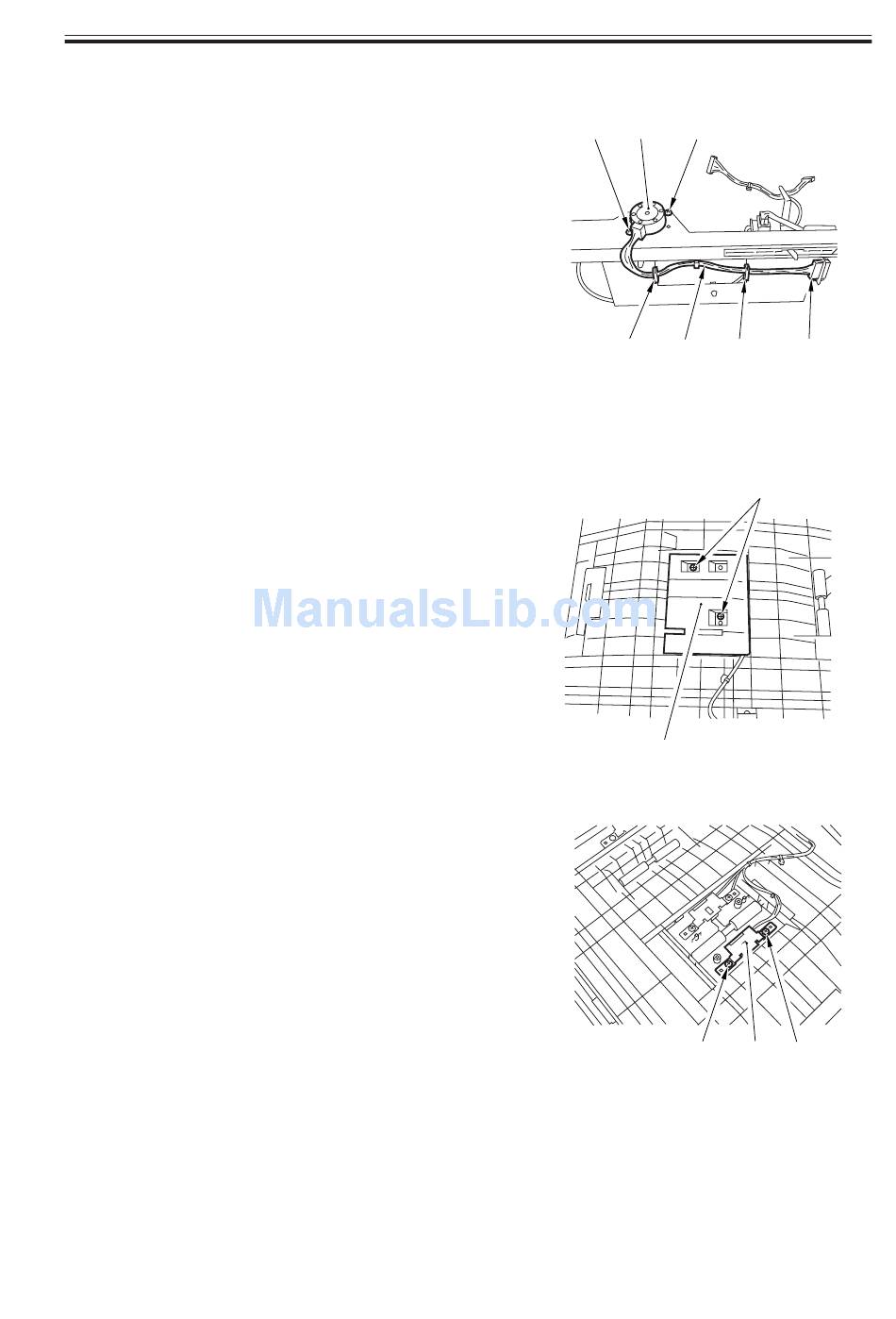

9.6.7 Removing the Horizontal Registration Motor

1) Remove the duplex unit from the ma-
chine.
2) Remove the horizontal registration unit.
3) Disconnect the connector [1], and free
the harness [2] from the harness guide
[3].
4) Remove the two mounting screws [4],
and detach the horizontal registration
motor [5].

9.6.8 Removing the Duplex Pre-Registration Sensor

1) Slide the duplex unit out the machine.
2) Remove the two mounting screws [1],
and detach the cover [2].
3) Remove the two mounting screws [3],
and detach the sensor together with its
base [4].
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 5 PICK UP/FEEDING SYSTEM
[4] [5]
[3]
F05-906-10
F05-906-11
F05-906-12
[4]
[2] [3] [1]
[1]
[2]
[3] [4] [3]
5-73 P
