Canon Image Reader-A1 iR5000i Service Manual page 316

CHAPTER 4 IMAGE FORMATION SYSTEM

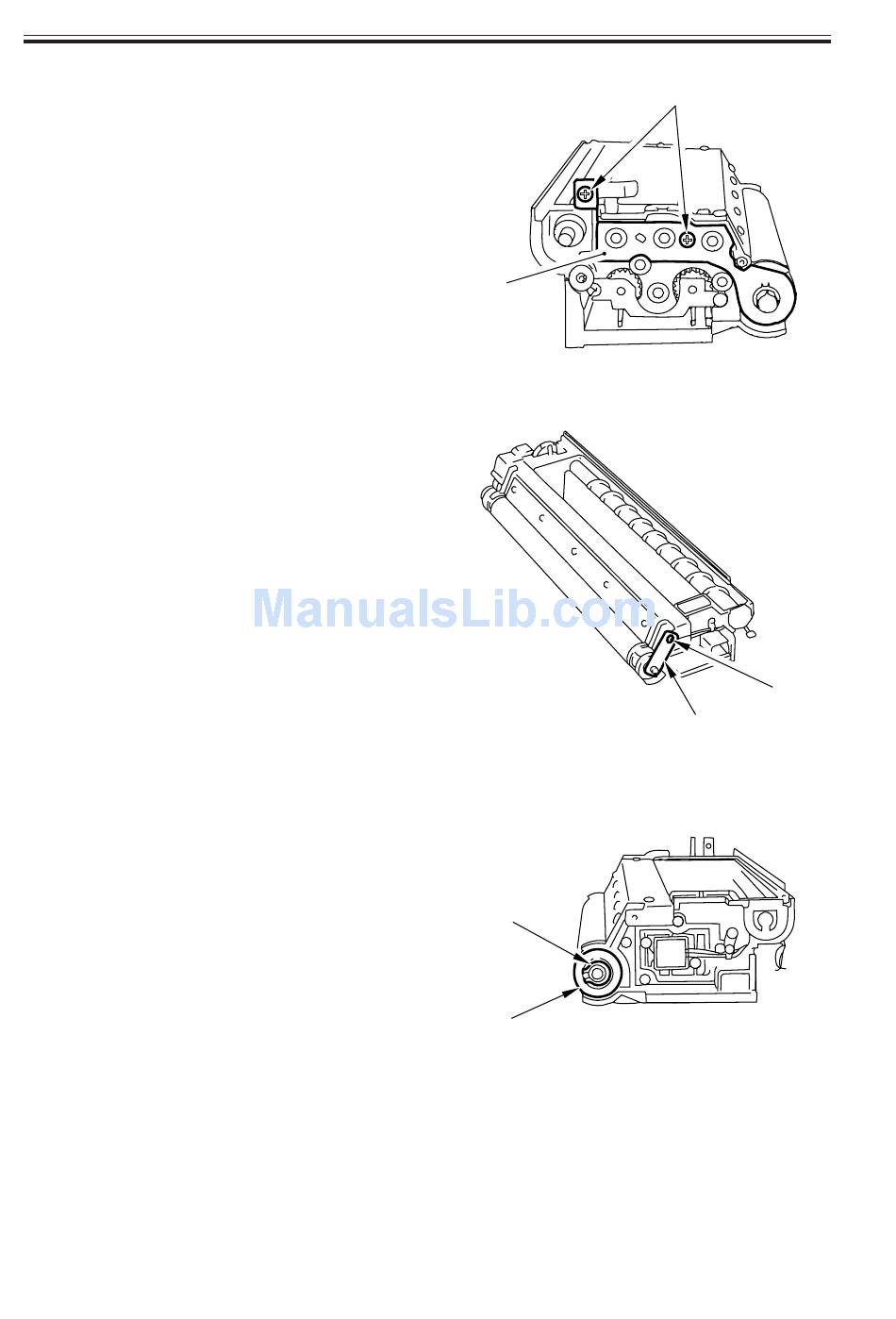

5) Remove the two mounting screws [7],
and detach the electrode plate [8].
6) Remove the mounting screw [9], and
detach the magnetic positioning plate
[10].
7) Remove the grip ring [11] mounted to
the cylinder shaft at the front, and de-
tach the push-on roll [12].
4-76 P
COPYRIGHT © 2001 CANON INC.
[8]
F04-709-07
F04-709-08
[11]
[12]
F04-709-09
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[7]
[9]
[10]
