CHAPTER 7 EXTERNALS AND CONTROLS

5.12 Others

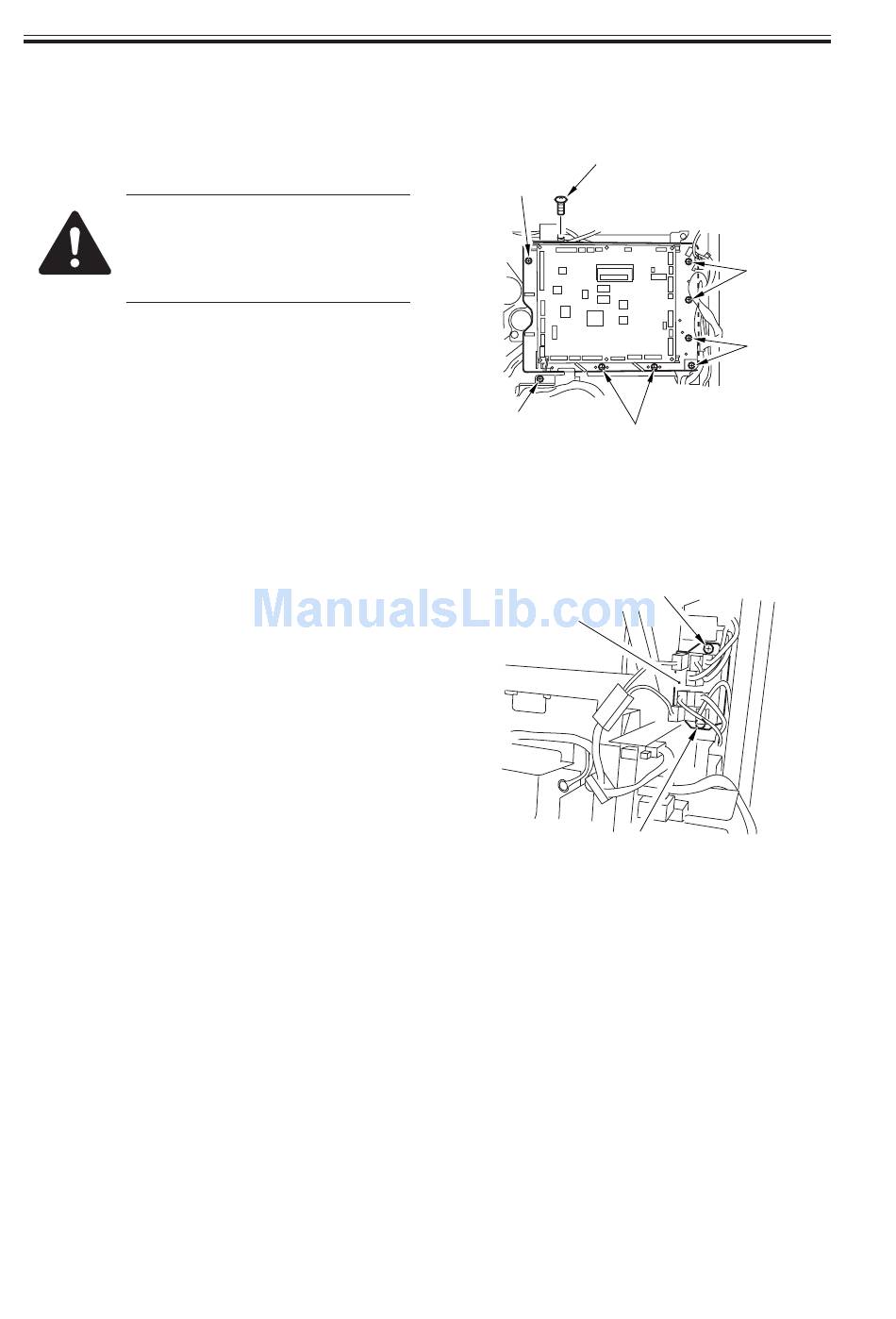

5.12.1 DC Controller PCB Base
1) Remove the HDD unit. (See p. 7-44P.)
When mounting the HDD unit,
be sure that the flat cable is un-
der the plastic sheet of the HDD
upper case.
2) Remove the nine screws [1], and dis-
connect the 26 connectors; then, detach
the DC controller PCB base.

5.12.2 Relay

1) Remove the rear upper/lower cover and
left upper/lower cover.
2) Disconnect the cable connected to the
relay, and remove the two screws [1];
then, detach the relay [2].
7-54 P
COPYRIGHT © 2001 CANON INC.
[1]
[1]
[1]
F07-512-01
[2]
F07-512-02
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[1]
[1]
[1]
[1]
[1]
