CHAPTER 9 SHIFT TRAY
6.2 Removing the Tray Drive Unit
1) Perform steps 1) through 6) to detach
the shift tray driver PCB.

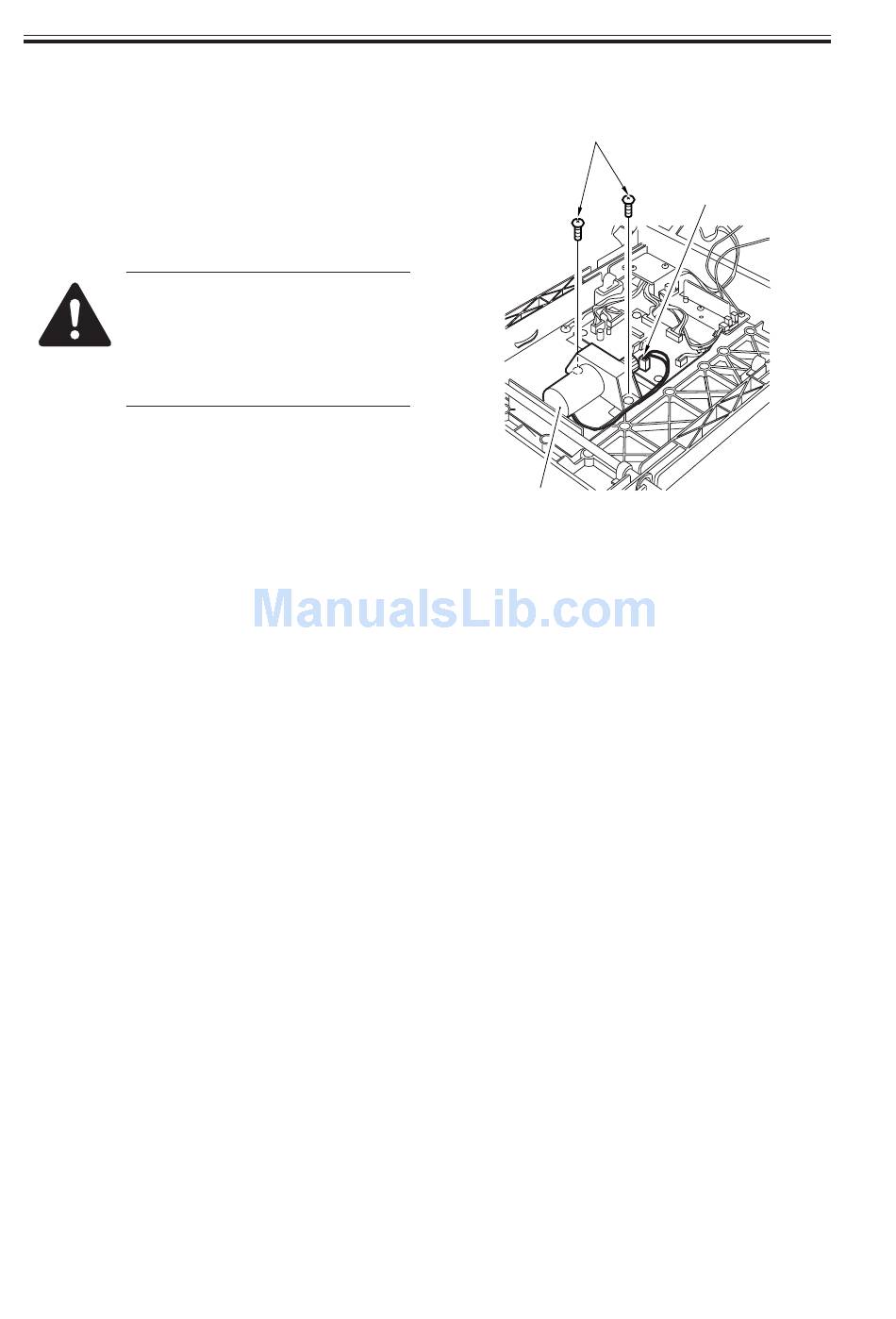

2) Remove the two screws [15], and dis-
connect the connector [16]; then, detach
the tray drive unit [17].
Points to Note When Mounting
Be sure to adjust the position of
the limit sensor (front, rear; see
5.1 "Adjusting the Limit sensor
Position.")
9-12 P
COPYRIGHT © 2001 CANON INC.
[15]
[17]
F09-602-01
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[16]
