1.3.2 Left/Right Front Deck

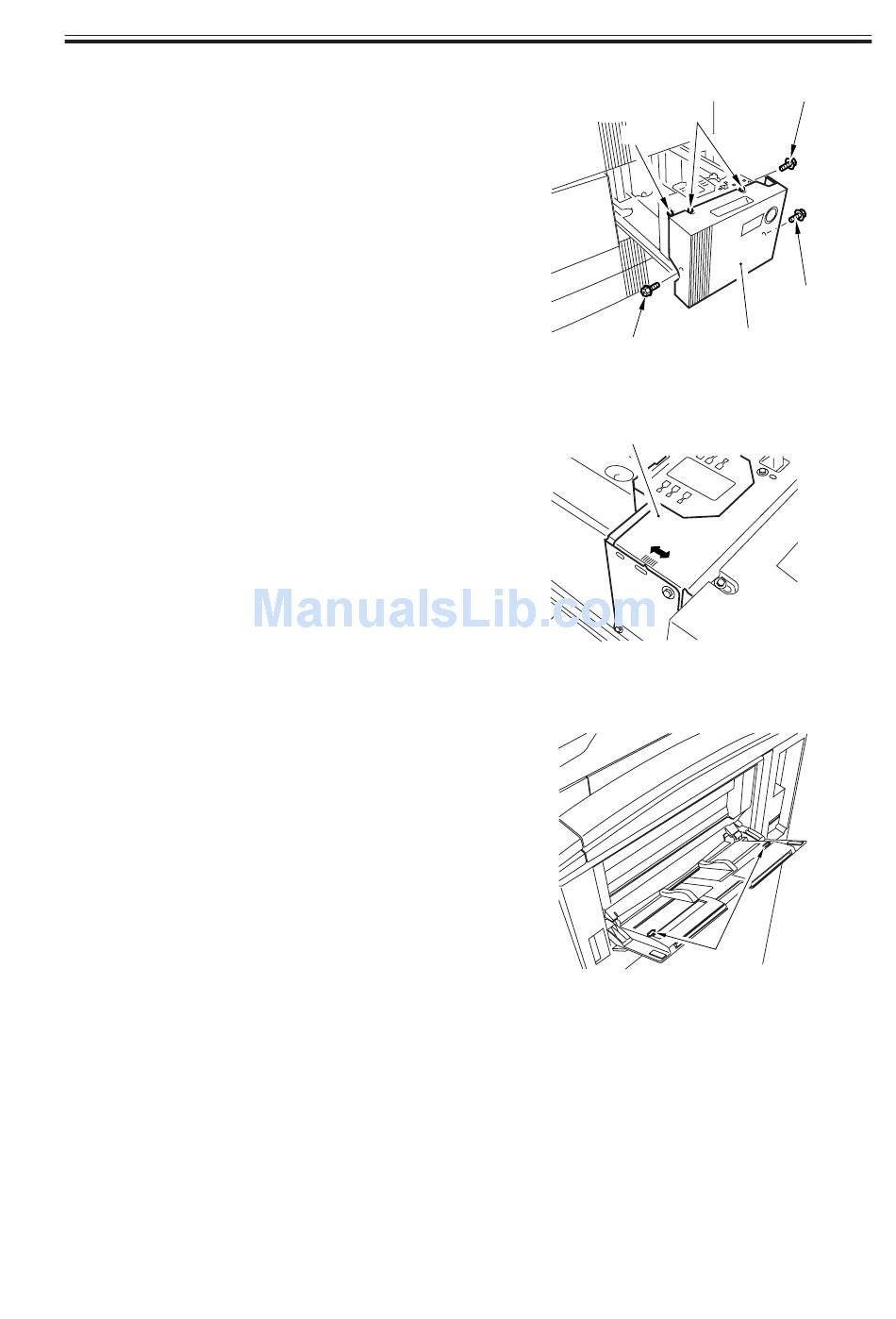

1) Loosen the four screws [2] and the two
fixing screws [3] of the cassette front
cover [1].
2) Move the cassette guide assembly
(front) [4] to the front or the rear to
make adjustments.
1.3.3 Manual Feed Tray
1) Loosen the two mounting screws [1] of
the manual feed tray, and adjust the po-
sition of the manual feed tray.
