CHAPTER 2 ORIGINAL EXPOSURE SYSTEM
8. PCBs

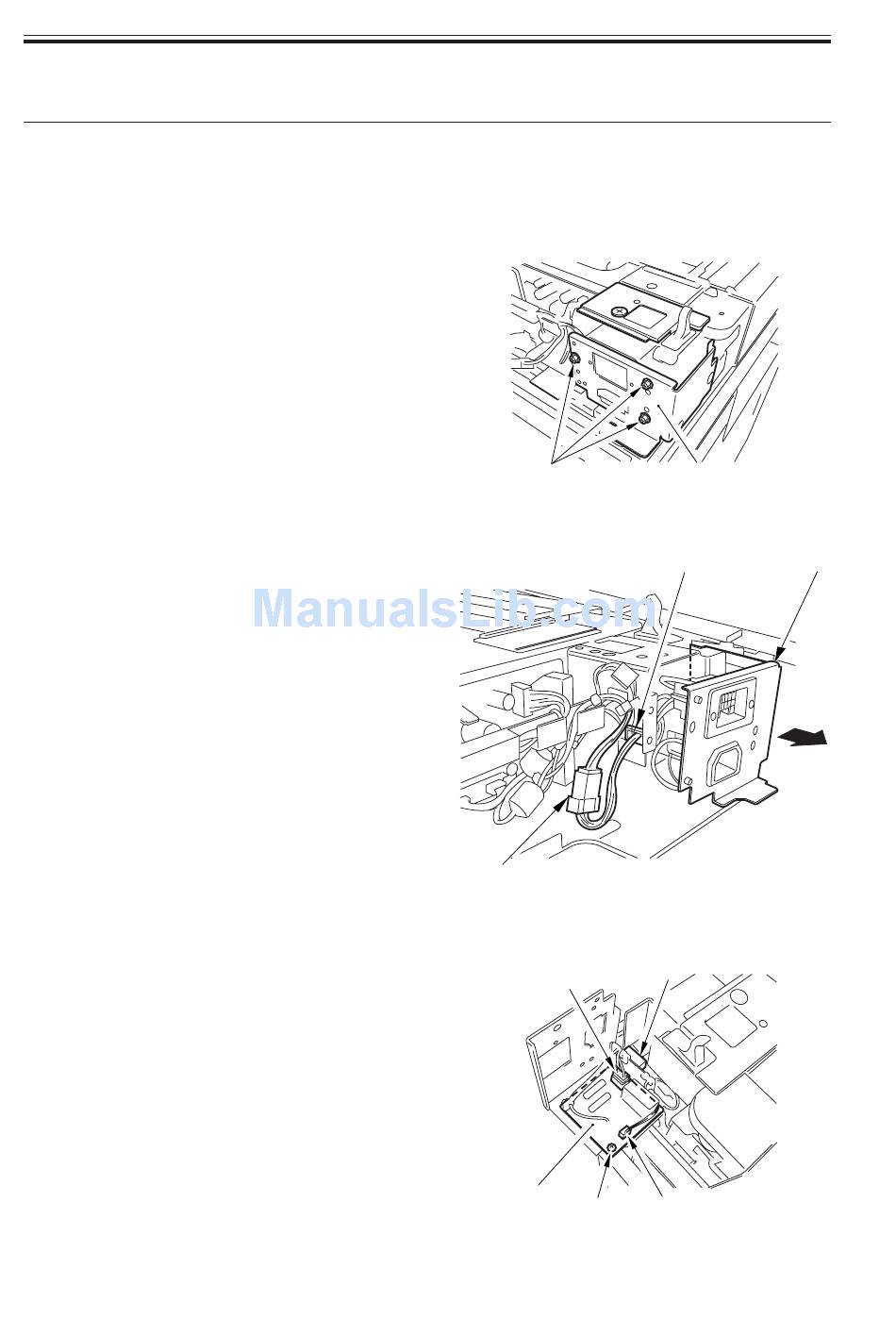

8.1 Removing the Fuse PCB
1) Remove the reader rear cover..
2) Remove the three screws [1], and free
the fuse PCB base [2] from the ADF
mounting plate.
3) Disconnect the connector [3], and free
the harness from the edge saddle [4];
then, draw out the fuse PCB farther.
4) Remove the screw [5], and disconnect
the three connectors [6]; then, detach
the fuse PCB [7].
2-28 R
COPYRIGHT © 2001 CANON INC.
[1]
F02-801-01
[3]
F02-801-02
[6]
[7]
[5]
F02-801-03
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[2]
[4] [2]
[6]
[6]
