CHAPTER 1 GENERAL DESCRIPTION

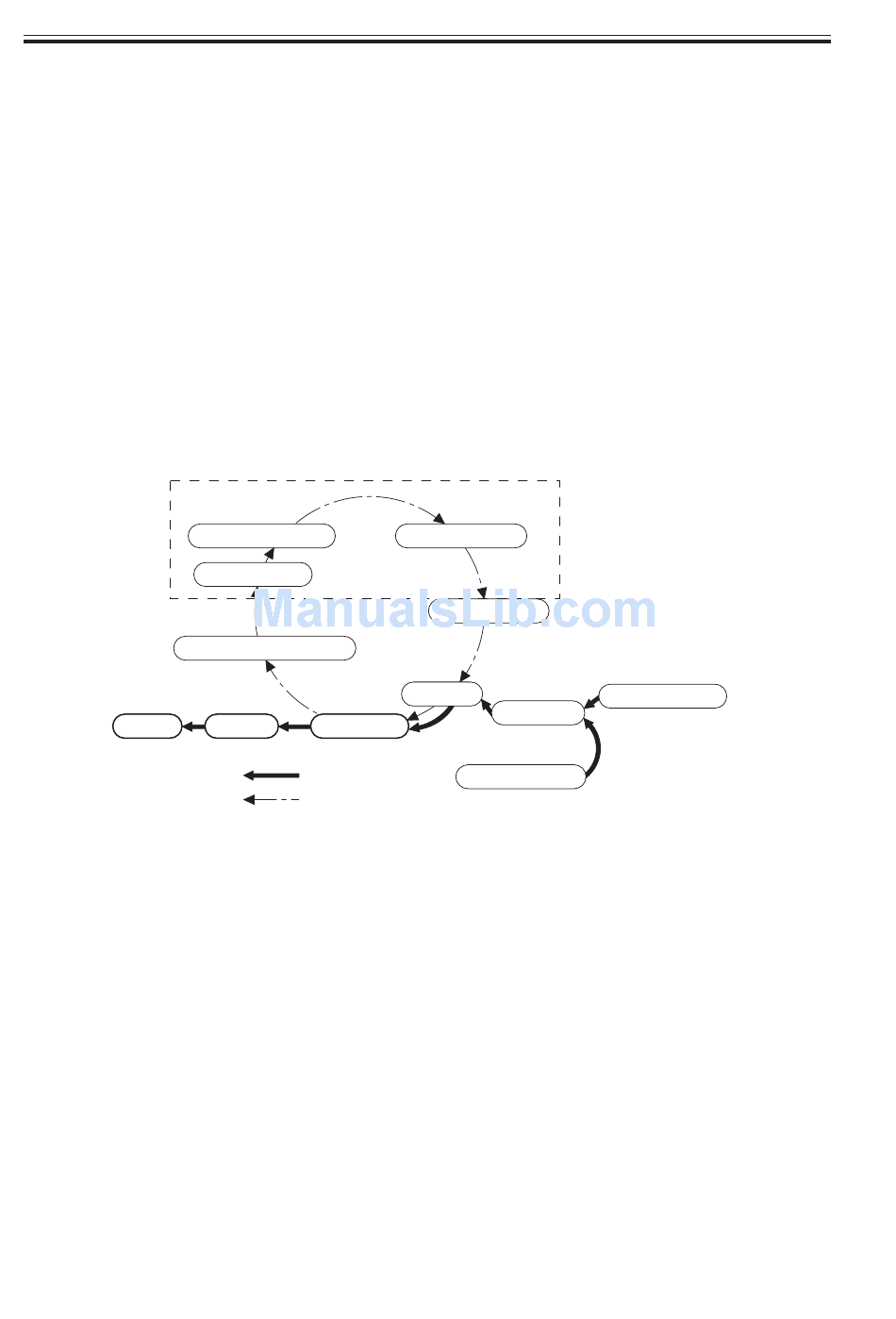

The machine's image formation process consists of the following eight steps:
Step 1
Pre-exposure
Step 2
Primary charging (positive DC)
Step 3
Laser exposure*
Step 4
Development (AC + positive DC)
Step 5
Transfer (negative DC)
Step 6
Separation (AC + positive DC)
Step 7
Fixing
Step 8
Drum cleaning
*Deposits toner on the VD. Used also for blank exposure.
Delivery
1-8 P
Static Image Formation Block
2. Primary charging
1. Pre-exposure
8. Drum cleaning
7. Fixing
6. Separation
flow of paper.
rotation of drum.
COPYRIGHT © 2001 CANON INC.
3. Laser exposure
4. Development
5. Transfer
Registration
Deck/cassette
F01-201-02
