CHAPTER 3 INSTALLATION

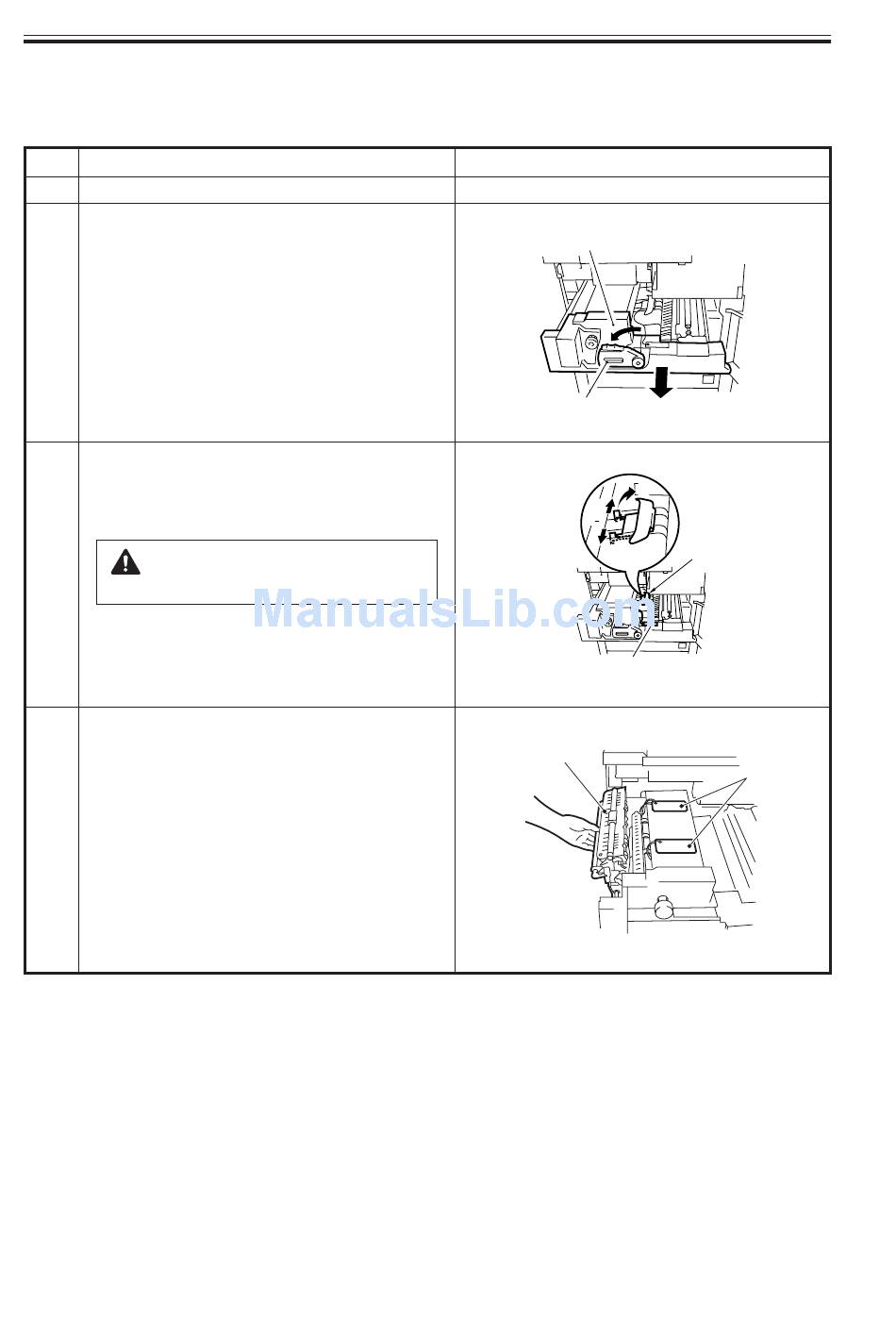

2.5 Mounting the Fixing Assembly

Step
1 Open the front cover.
2 Shift the fixing/feeding assembly releas-
ing lever[1] in the direction of the arrow
(left) to free the transfer/separation
charging assembly.
Slide out the fixing/feeding assembly[2]
to the front.
3 Remove the separation claw releasing
member[3] and the tag[4] from the fix-
ing/feeding assembly.
Remove the tape and glue from
the feeding belt.
4 Remove the retaining tape of the tags[5],
and open the fixing/delivery assem-
bly[6].
3-12 S
Work
COPYRIGHT © 2001 CANON INC.
Checks/remarks
[2]
[1]
[6]
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[3]
[4]
[5]
