CHAPTER 6 FIXING SYSTEM

2.4 Controlling the Drive of the Fixing Assembly Inlet Guide

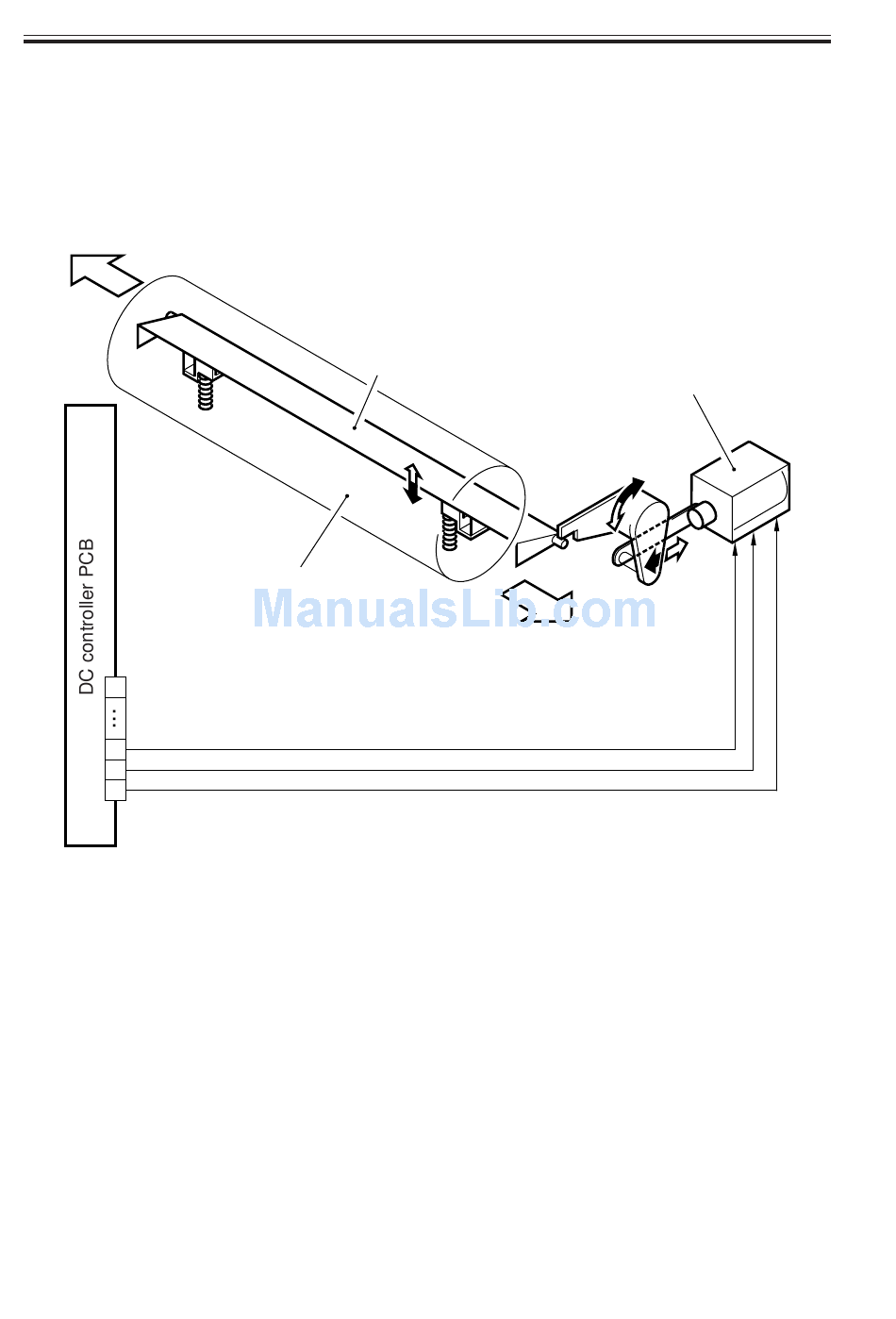

The machine changes the height of the fixing assembly inlet guide to suit specific paper
sizes, thereby ensuring correct movement of paper. The height is controlled by the fixing as-
sembly inlet solenoid operated by the following control system:
(rear)
1
J106A
24V
9
SL1P* [1]
10
SL1R* [2]
11
The system uses the following signals:
[1] Fixing assembly inlet guide drive signal; when '0', the fixing assembly inlet guide
moves up.
[2] Fixing inlet guide drive signal; when '0', the fixing assembly inlet guide moves down.
6-8 P
Inlet guide
Fixing upper roller
F06-204-01
COPYRIGHT © 2001 CANON INC.
(front)
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
Fixing inlet guide
solenoid (SL1)
