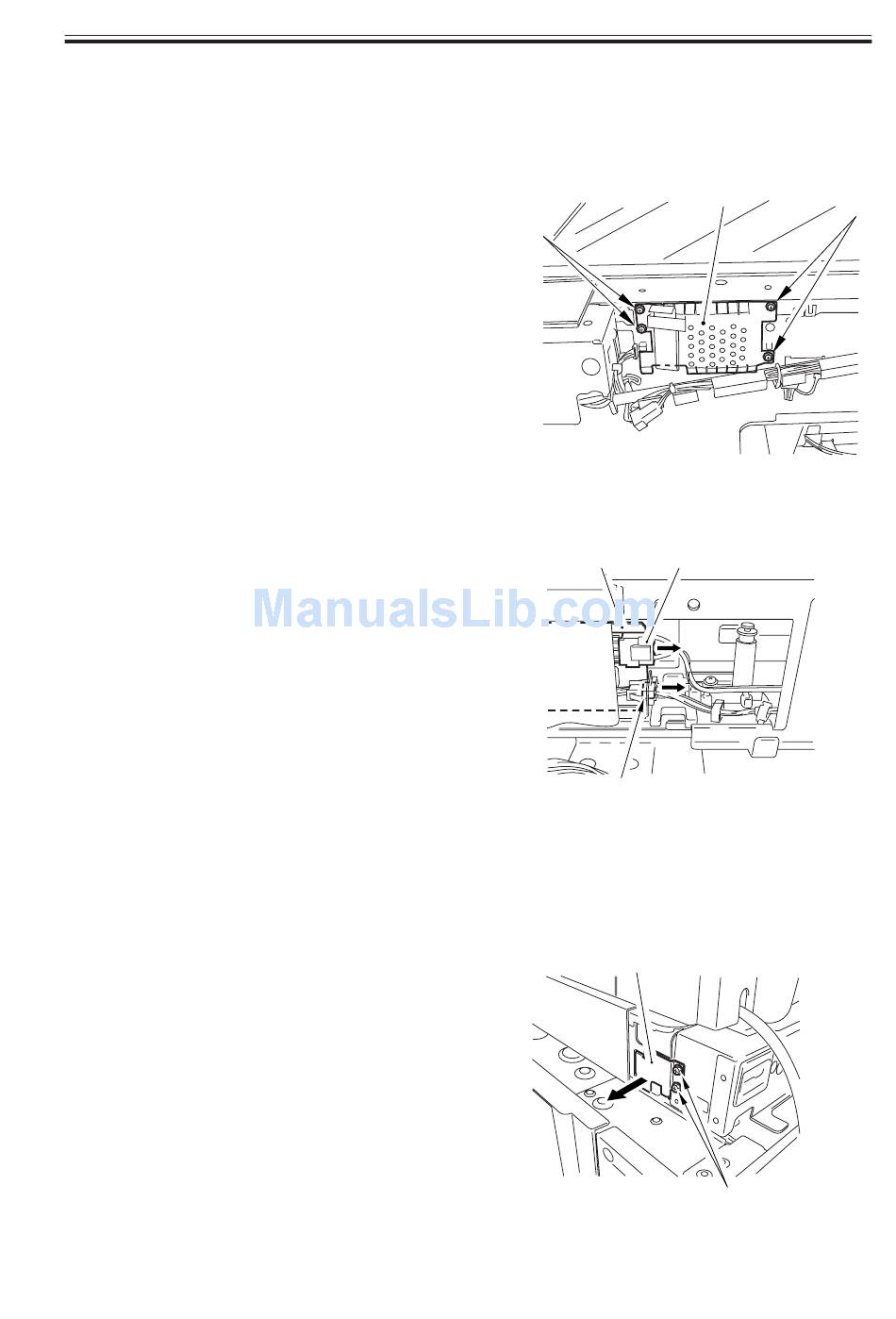

8.2 Removing the Inverter PCB
1) Remove the right upper cover and the
right upper cover base.
2) Remove the reader controller PCB.
3) Remove the three screws [1], and de-
tach the blanking plate [2].
4) Disconnect the two connectors[4] from
the inverter PCB [3].
5) Remove the two screws [5], and pull
out the inverter unit [6].
COPYRIGHT © 2001 CANON INC.
CHAPTER 2 ORIGINAL EXPOSURE SYSTEM
2000 2000 2000 2000
CANON iR5000i/iR6000i REV.0 JUNE 2001
[1]
F02-802-01
[3]
[4]
[4]
F02-802-02
[6]
F02-802-03
[2]
[1]
[5]
2-29 R
