Canon Image Reader-A1 iR5000i Service Manual page 111

Step

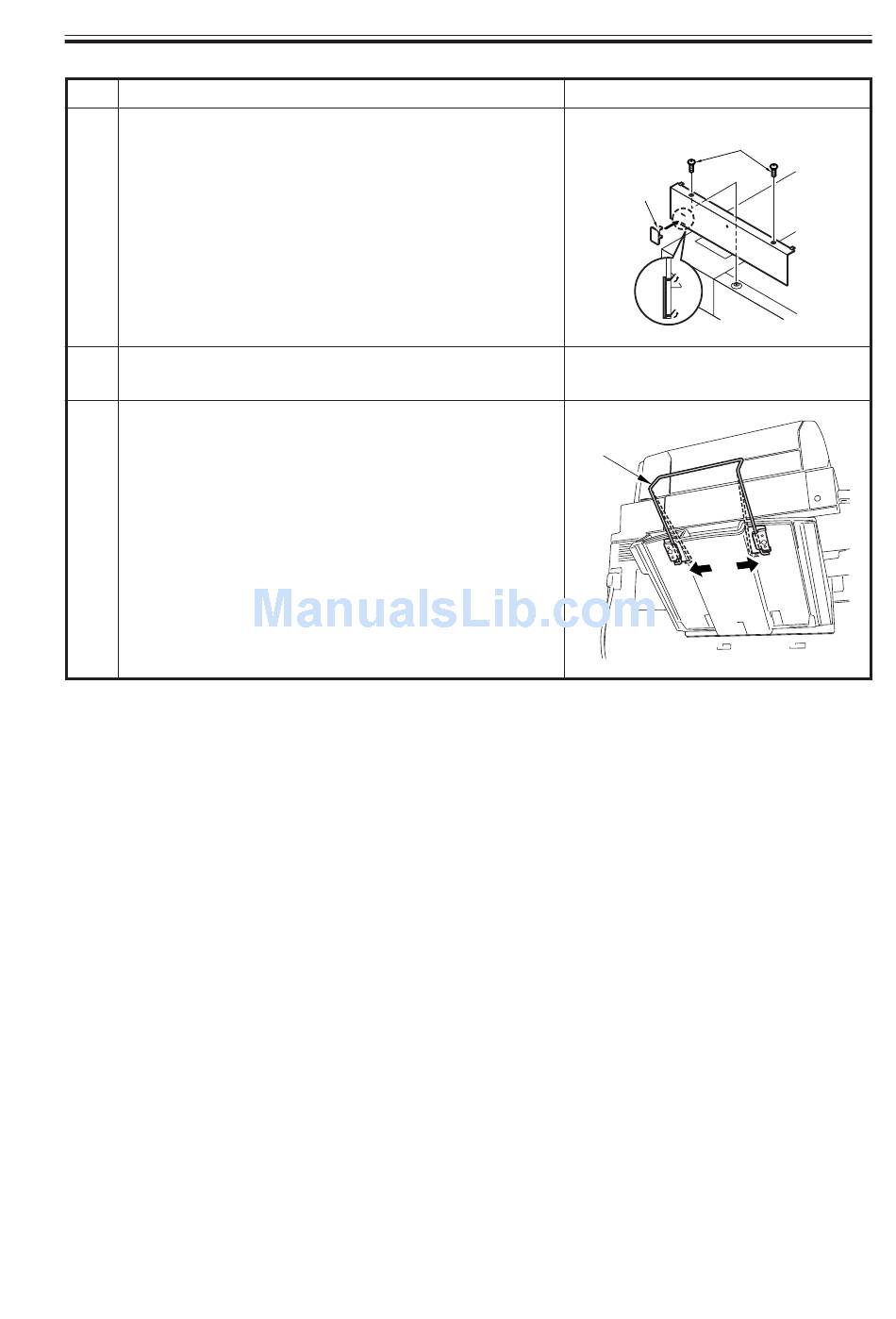

4 Remove the two screws [7], and detach the
reader left cover; then mount the magnet catcher
[8].
5 Mount the delivery tray.
6 Attach the delivery bar [9].
COPYRIGHT © 2001 CANON INC.
Work
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 3 INSTALLATION
Checks/remarks
[7]
[8]
[9]
3-31 S
