CHAPTER 8 PAPER DECK

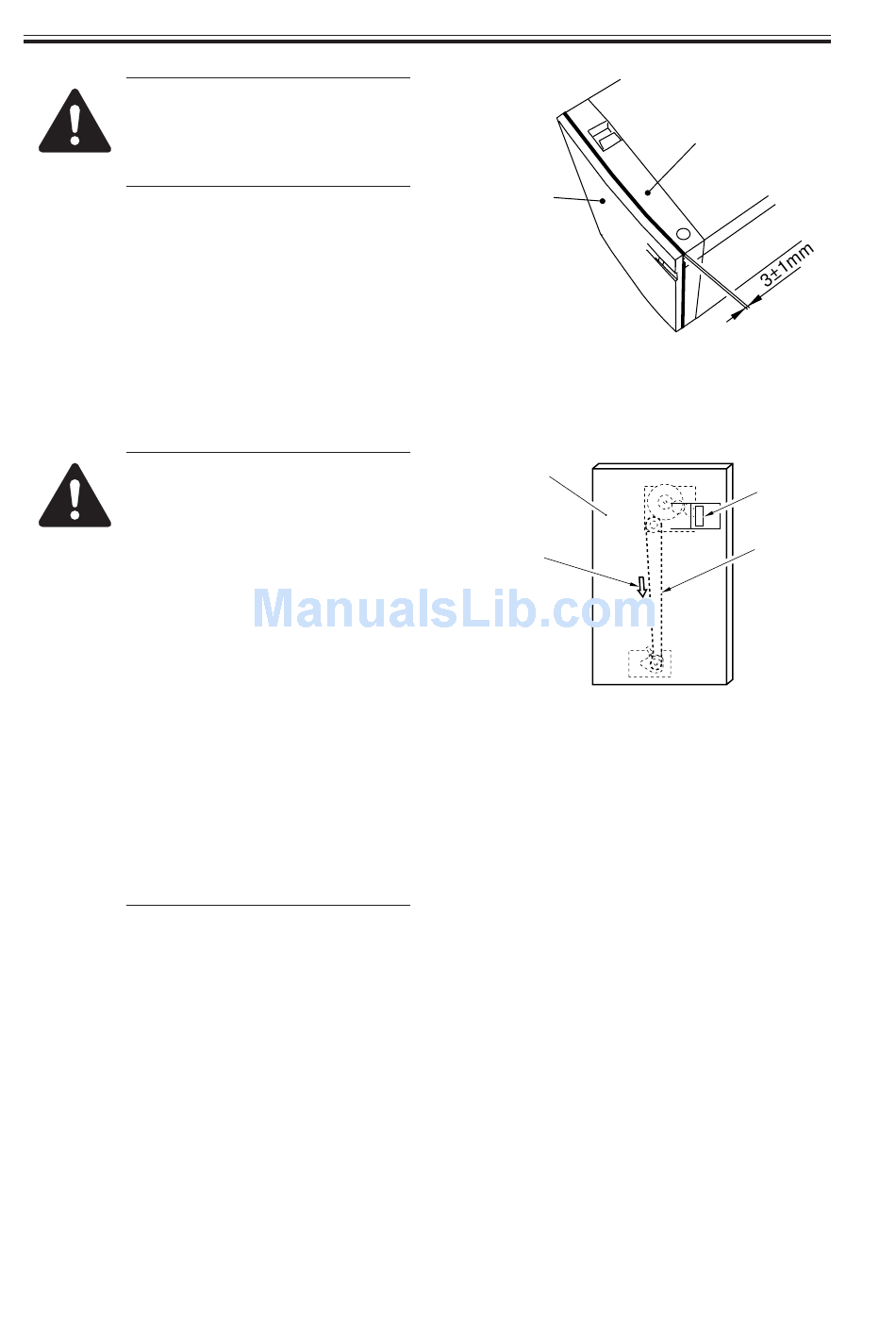

When mounting the front cover,
be sure that the gap between the
front cover and the front upper
cover is 3±1 mm.
If you inadvertently moved the
paper level indicator belt behind
the front cover when removing
the front cover, or moved the
deck lifter, move the deck lifter
to its lower limit, and then move
the drive belt in the direction of
the arrow (shown in the figure
to the right) until it stops so that
the area of white increase; then,
mount the front cover.
(If the deck is operated without
matching the paper level indica-
tor and the deck lifter position,
the drive mechanisms of the pa-
per level indicator can suffer
damage.)
8-22 P
COPYRIGHT © 2001 CANON INC.
Front cover
F08-301-05
Deck front cover
The paper level
(white area)
increases.
F08-301-06 Front View
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
Front upper cover
Display
window
Drive belt
