CHAPTER 3 STANDARDS AND ADJUSTMENTS

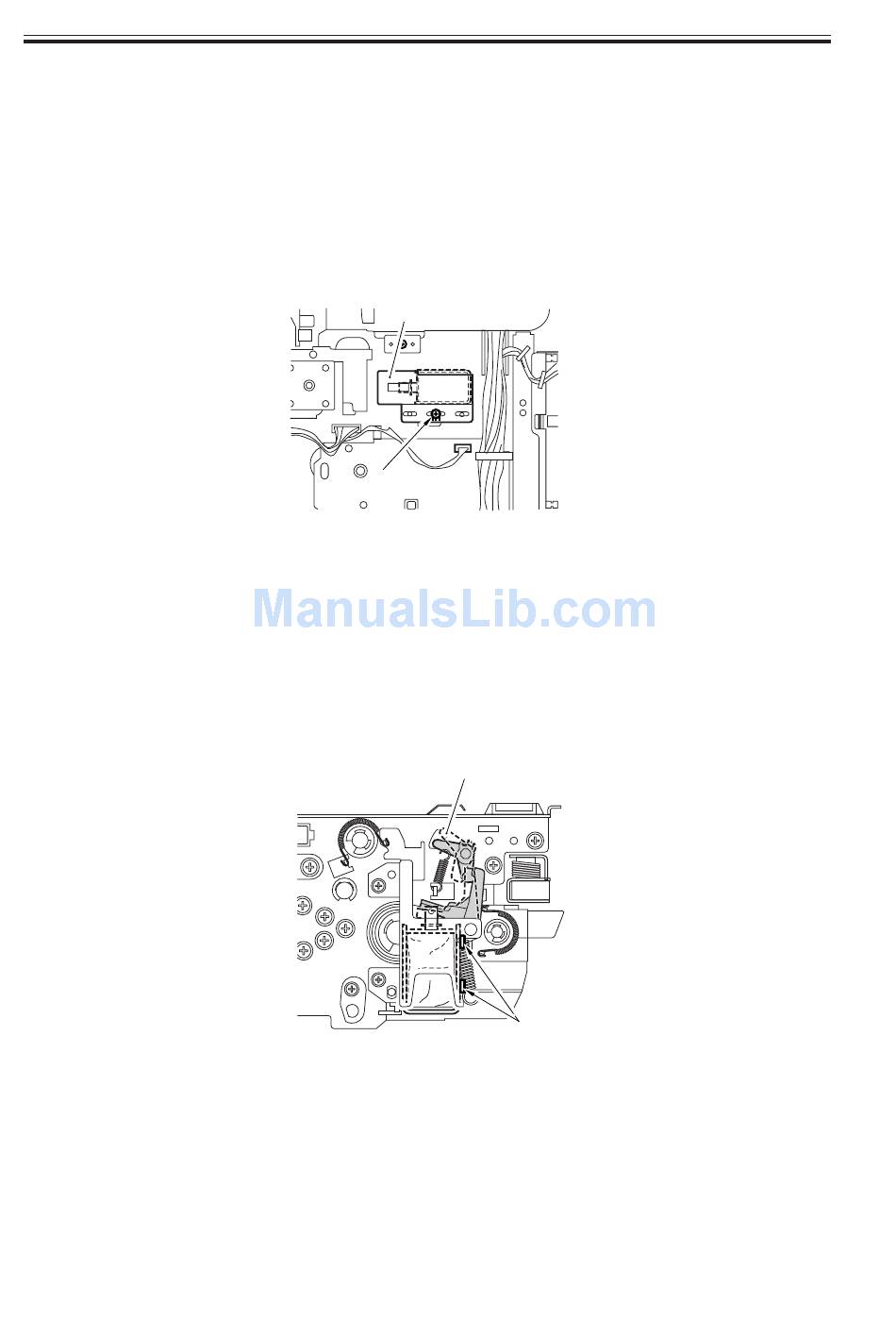

4.12 Adjusting the Position of the Left Deck Pickup Solenoid
(SL7)
Before removing the left deck pickup solenoid from the support plate [1], take note of its
position with reference to the fixing screw [2] of the solenoid. Or, mark the position for the
solenoid by drawing a line on the support plate with a scriber.
When mounting the solenoid on its own, be sure to secure it in its original position.
4.13 Adjusting the Position of the Reversing Flapper Solenoid
(SL8)
1) Adjust the potion of the solenoid so that the drive lever [1] is pushed fully when the so-
lenoid turns on (i.e., when the plunger is drawn).
3-18 T
[2]
F03-412-01
F03-413-01
COPYRIGHT © 2001 CANON INC.
[1]
[1]
[2]
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
