CHAPTER 7 EXTERNALS AND CONTROLS

5.10 Sensors

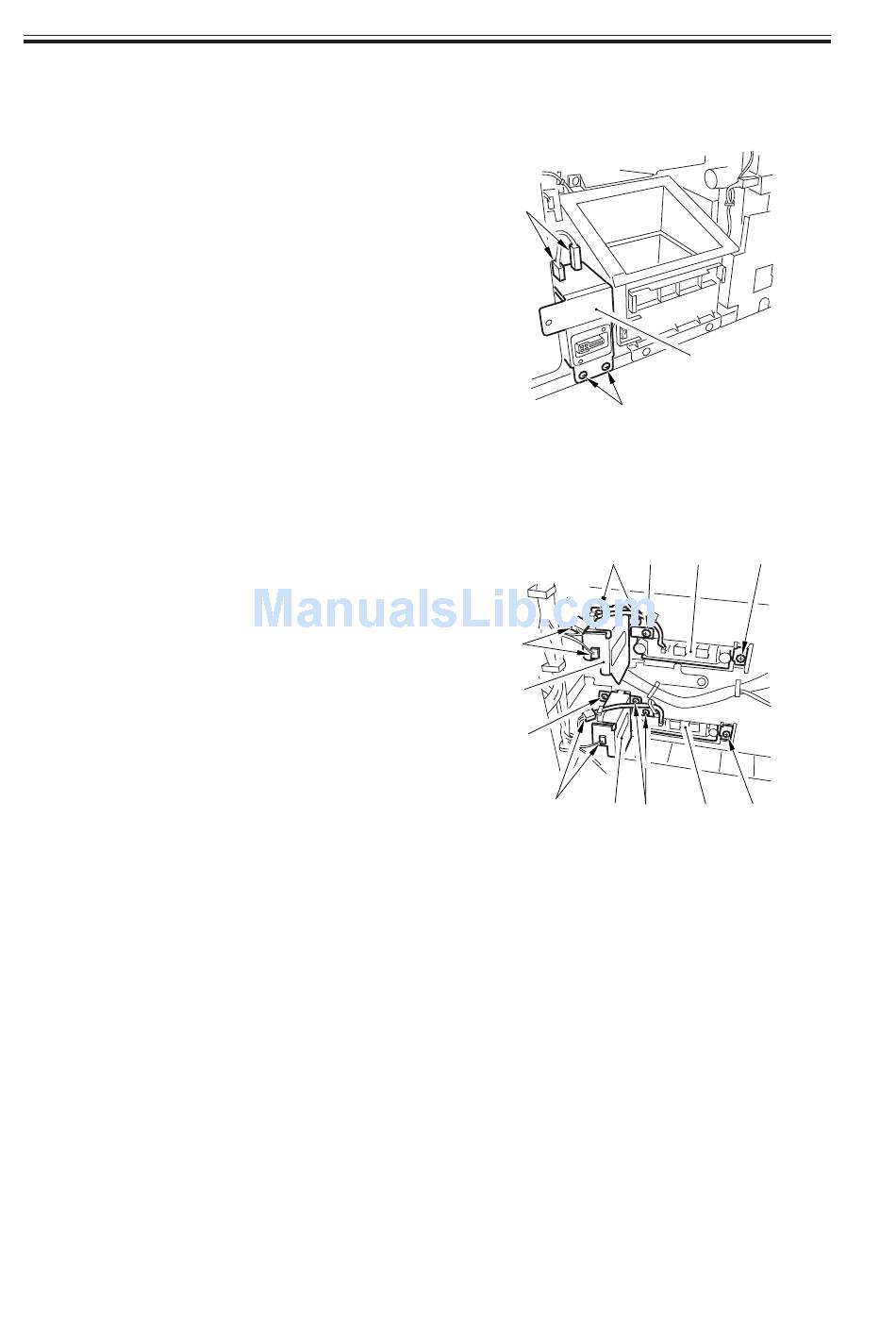

5.10.1 Cassette 3/4 Paper Size (width/length) Sensor
1) Remove the exhaust fan duct.
2) If the cassette 4 sensor is to be removed,
remove the two screws [1], disconnect
the two connectors [2], and detach the
connector base [3].
3) Remove the two screws [4] each, and
disconnect the connector [5]:
• cassette 3 paper size width sensor [6]
• cassette 3 paper side length sensor [7]
• cassette 4 paper size width sensor [8]
• cassette 4 paper side length sensor [9]
7-50 P
COPYRIGHT © 2001 CANON INC.
[2]
F07-510-01
[5]
[6]
[4]
[5]
F07-510-02
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[3]
[1]
[4] [4] [7] [4]
[8] [4] [9] [4]
