ADJ-S
The scanner home position.
Range of
16 to 128 (A change of '1' causes a shift of 0.1 mm.)
adjustment
Not change.
Caution

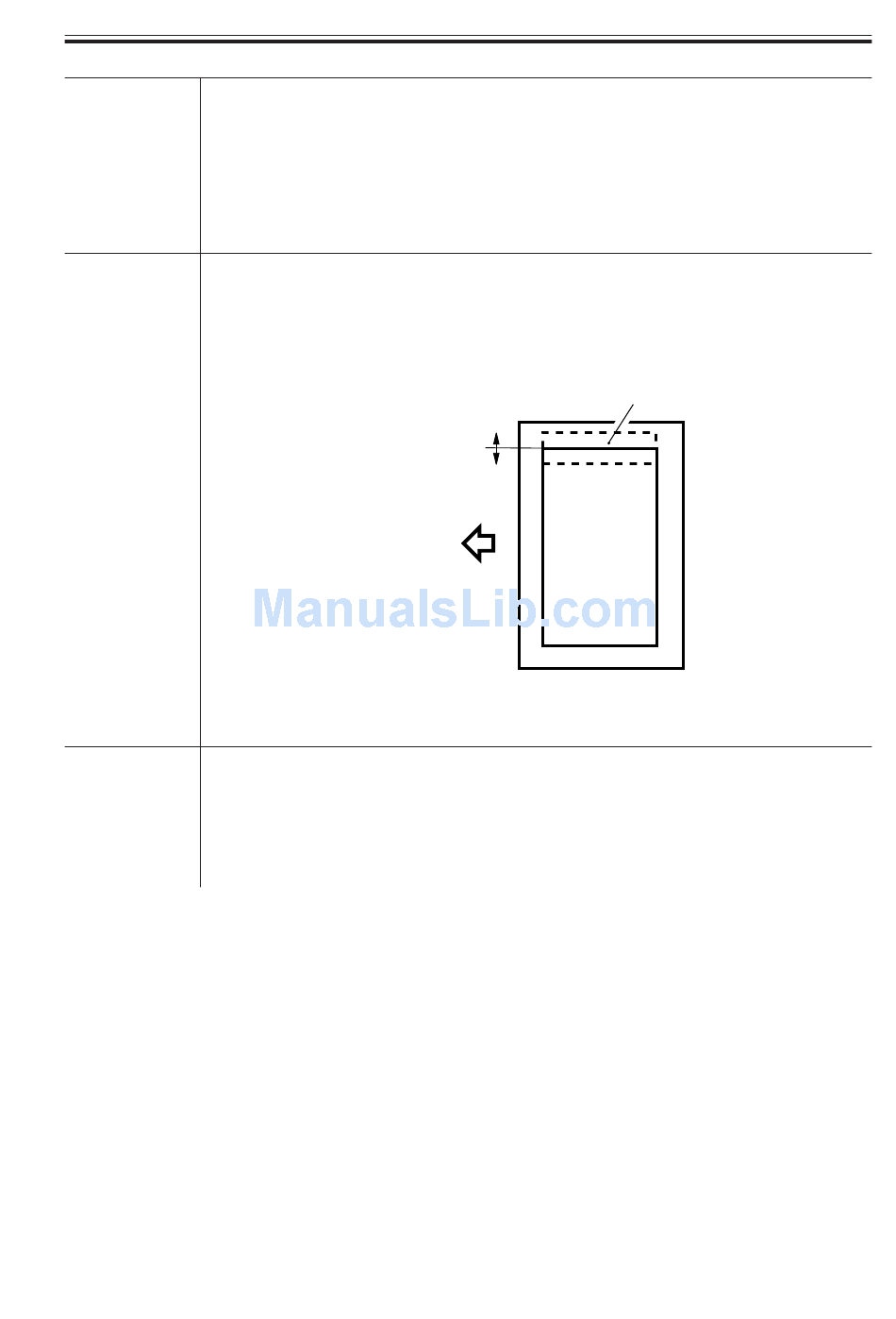

ADJ-Y-DF
Use it to adjust the ADF read start position (ADF horizontal registration) in
scanning direction.
Range of
100 to 400 (unit: 0.1 mm)
adjustment
STRD-POS
Use it to adjust the CCD read position for stream reading.
Range of
30 to 60 (A change of '1' causes a shift of 0.1 mm.)
adjustment
COPYRIGHT © 2001 CANON INC.
Lower setting
Higher setting
Feed direction
2000 2000 2000 2000
CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 5 SERVICE MODE
Print image
F05-401-06
COPIER>ADJUST
5-47 T
