CHAPTER 3 STANDARDS AND ADJUSTMENTS
4.8 Adjusting the Fixing Inlet Guide Solenoid (SL1)

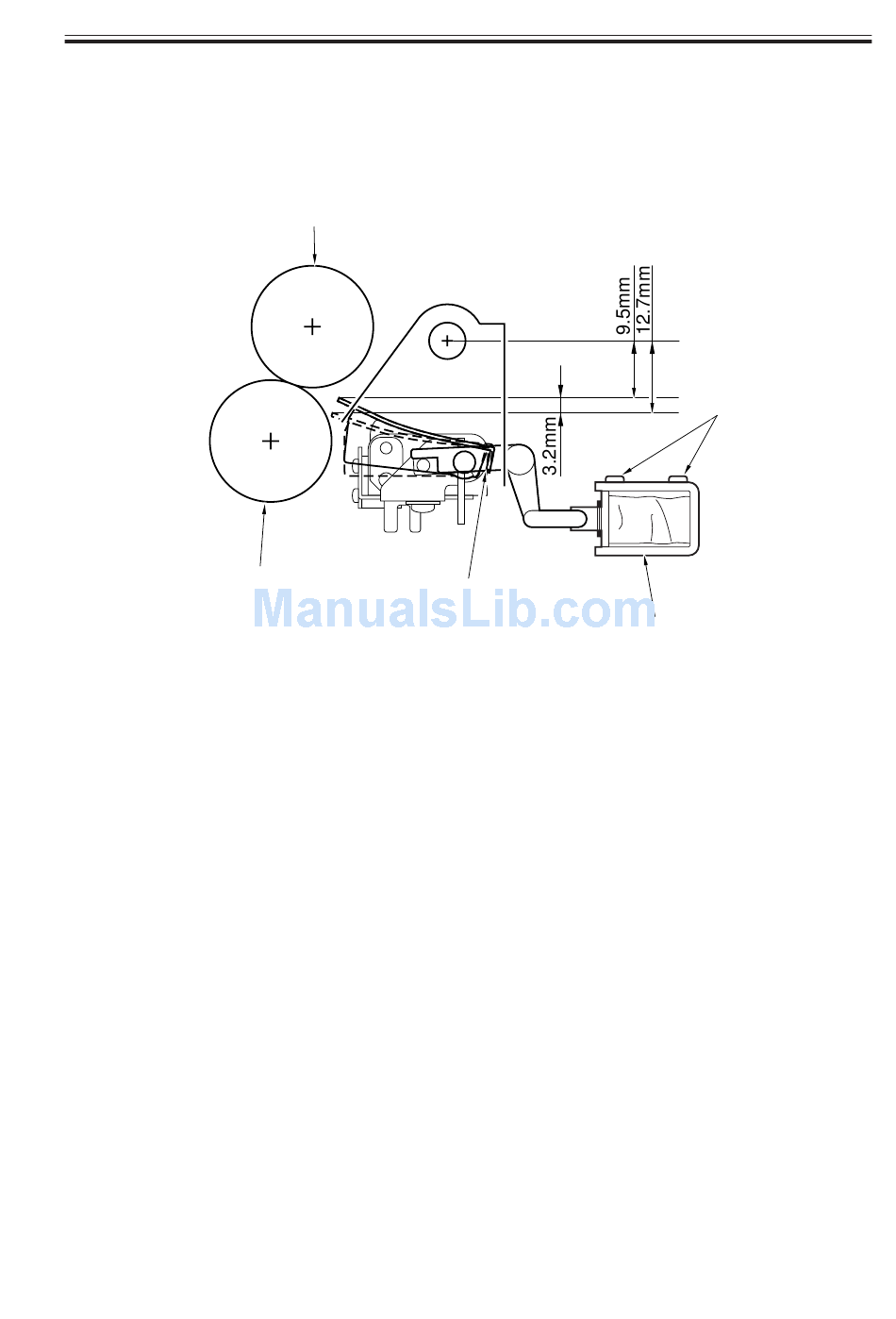

Adjust the position of the solenoid using the two screws [1] so that the guide will be posi-
tioned as indicated when the solenoid turns on.
Upper roller
[1]
Lower roller
Inlet guide
Solenoid
F03-408-01
3-15 T
COPYRIGHT © 2001 CANON INC.
2000 2000 2000 2000
CANON iR5000i/iR6000i REV.0 JUNE 2001
