CHAPTER 8 PAPER DECK

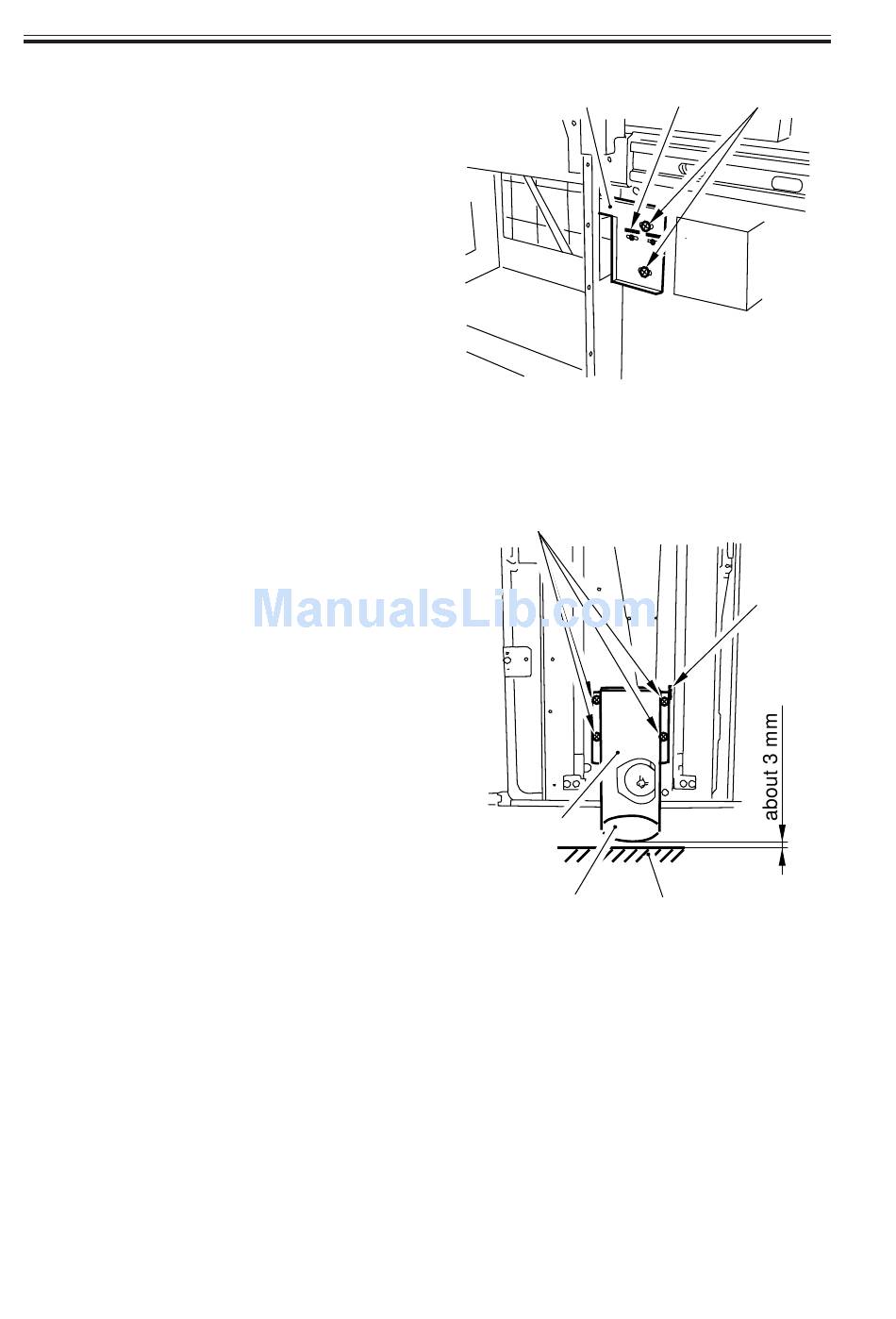

3.2.4 Adjusting the Deck Registration
If the left/right registration (0±1.5 mm)
must be adjusted, perform the following:
1) Slide out the compartment, and adjust
the position of the latch plate [1] of the
deck open solenoid (SL102) using the
two screws [2]. (At this time, use the
index [3] on the latch plate as a refer-
ence.)
3.2.5 Adjusting the Roll Position
If the compartment cannot be opened/
closed smoothly, requiring adjustment of
the roll located at the front of the deck, per-
form the following:
1) Remove the front cover. (See p. 8-20P.)
2) While keeping the compartment fully
slid out, adjust the four mounting
screws [4] on the roll support plate [3]
so that the roll [1] is about 3 mm from
the floor [2].
8-30 P
COPYRIGHT © 2001 CANON INC.
[1]
(left rear of the compartment)
F08-302-10
[4]
[3]
[1]
F08-302-11
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[3] [2]
[5]
[2]
