CHAPTER 5 PICK-UP/FEEDING SYSTEM

3. Controlling the Registration Clutch

3.1 Outline

The registration clutch is controlled so that print paper and the image on the drum match
at a specific point, and the timing at which it is turned on may be adjusted in service mode
(ADJUST>FEED-ADJ>REGIST).

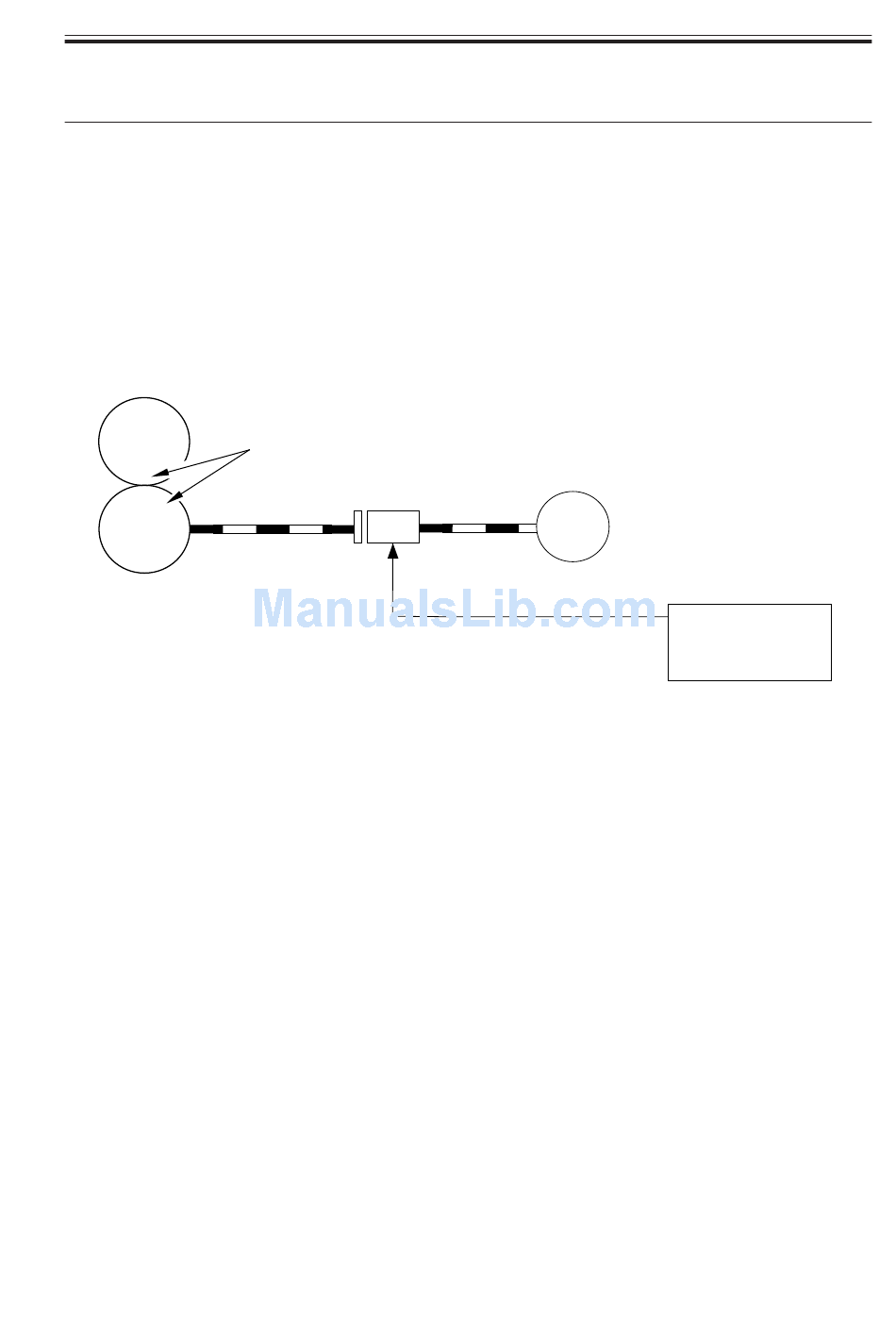

3.2 Control System

Registration rollers
Main motor
M2
CL2
Registration drive signal
(RGCD*)
J106-A6
DC controller
PCB
F05-302-01
5-25 P
