CHAPTER 8 PAPER DECK
3.4.8 Position of the Deck Pickup Roller Releasing Solenoid (SL101)

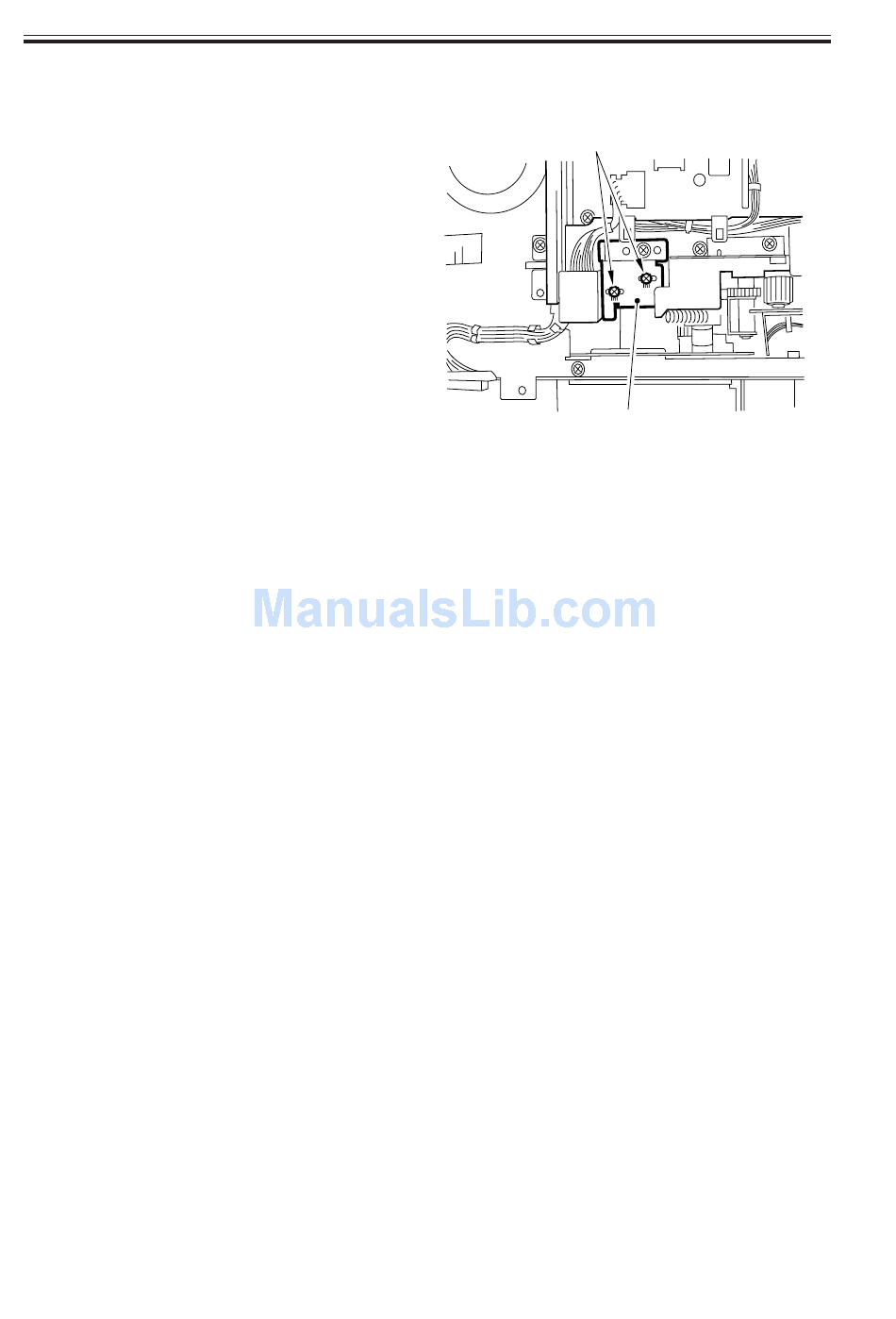

Take note of the positions of the two fix-
ing screws [2] of the solenoid with refer-
ence to the index on the support plate be-
fore removing the deck pickup roller releas-
ing solenoid [1] from the support plate; or,
mark the position of the solenoid on the
support plate with a scriber.
If the solenoid is to be mounted on its
own, be sure to locate it in its initial posi-
tion.
