Canon Image Reader-A1 iR5000i Service Manual page 146

CHAPTER 2 ORIGINAL EXPOSURE SYSTEM

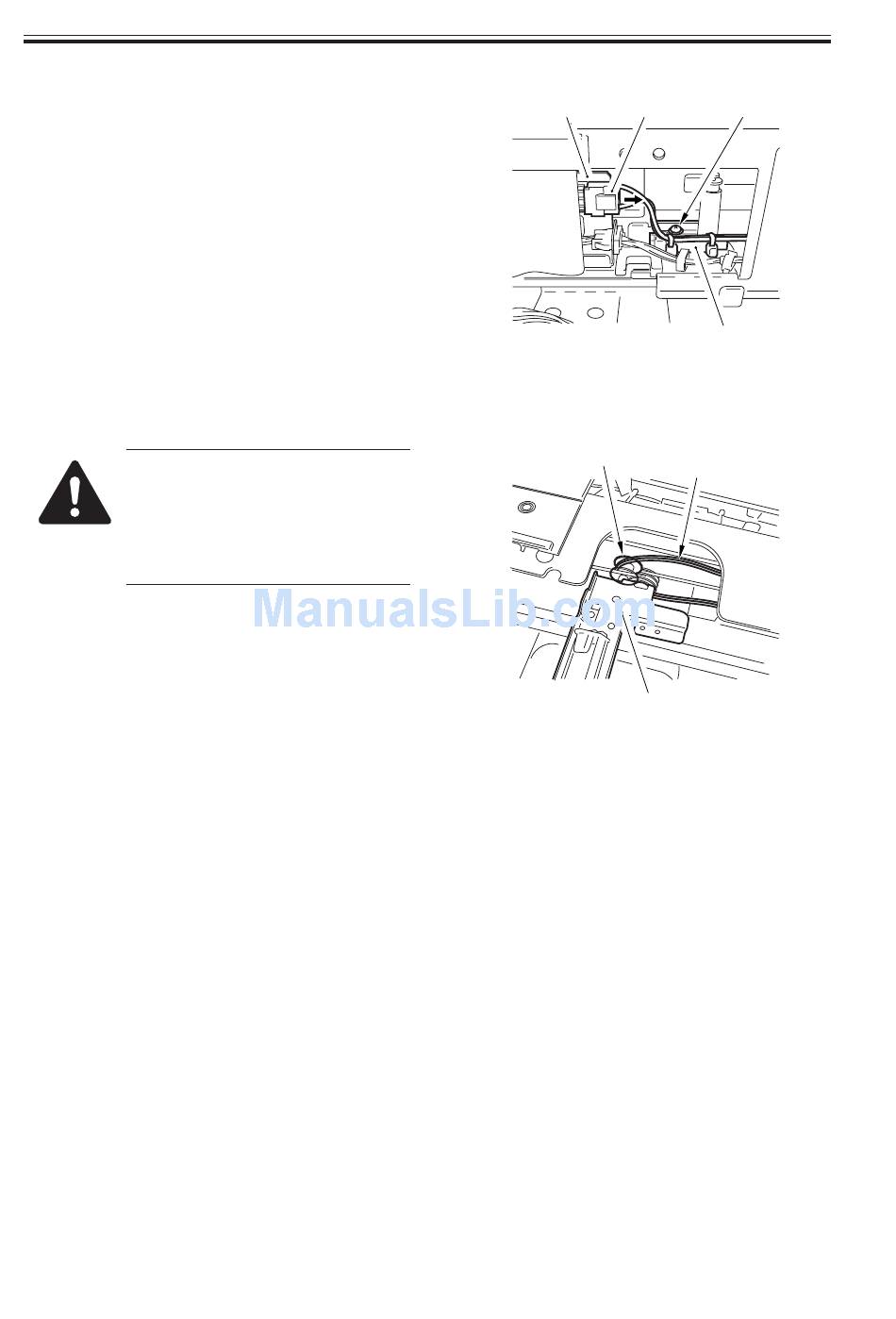

8) Disconnect the connector[8] from the
inverter PCB[7].
Use a screwdriver and remove the rivet
[9] out of the hole on the top of the
frame. The remove the cable retainer
plate [10].
When mounting the scanning
lamp, be sure to hook the cable
[11] on the pulley [13] of the
No. 2 mirror base [12] without
twisting it.
2-16 R
COPYRIGHT © 2001 CANON INC.
[7]
F02-501-03
[13]
F02-501-04
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
[8]
[9]
[10]
[11]
[12]
