3.2.2 Removing the Compartment

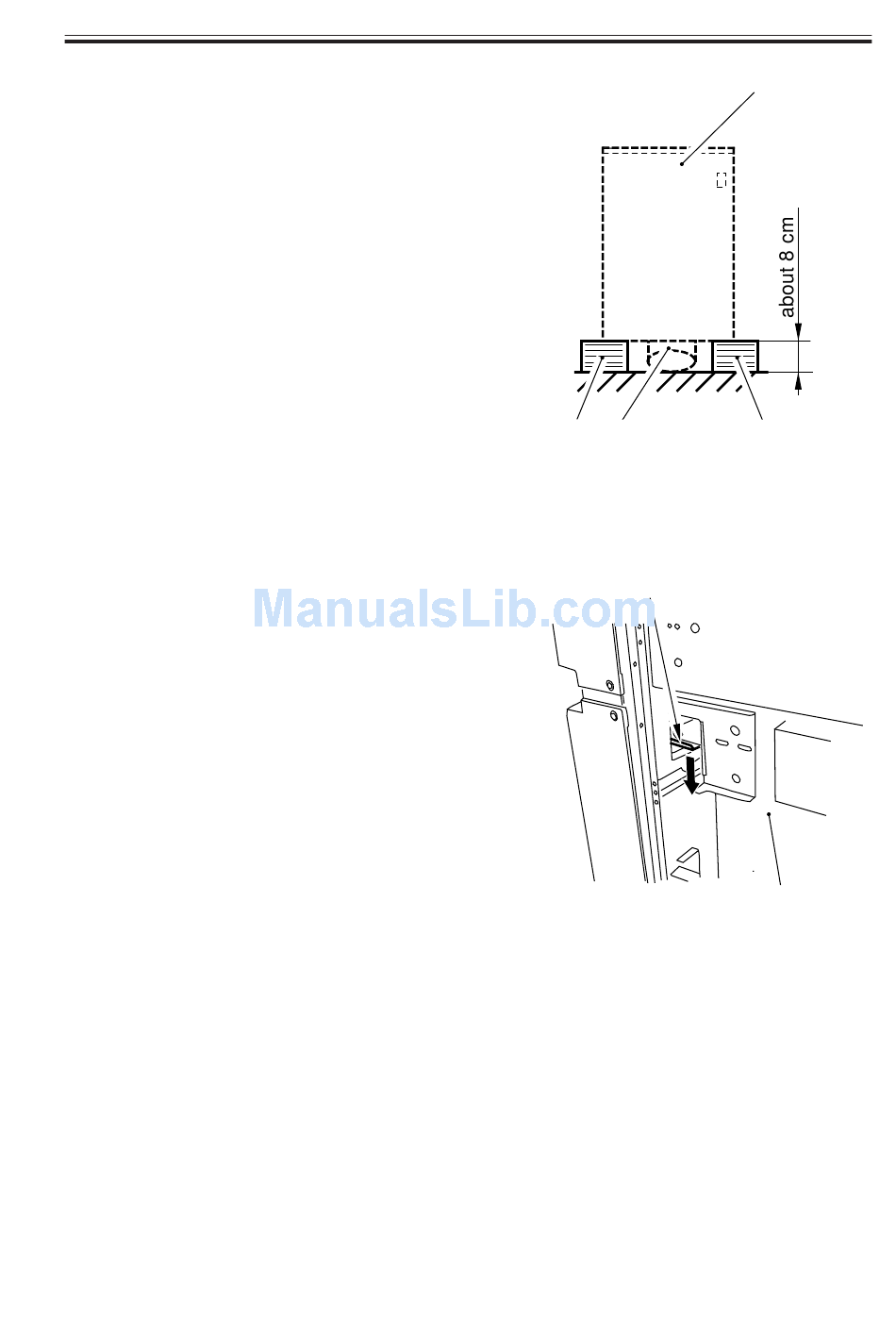

1) Place a stack of paper [3] (about 8 cm
in height) on the floor for the deck [2]
to prevent deforming the roll support
plate [1].
2) Disconnect the deck from the host ma-
chine, and push down the latch plate [5]
of the compartment [4] to open the
compartment [4].
COPYRIGHT © 2001 CANON INC. 2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 8 PAPER DECK
[3] [1]
F08-302-04
[5]
(rear)
F08-302-05
[2]
[3]
[4]
8-27 P
