CHAPTER 7 EXTERNALS AND CONTROLS

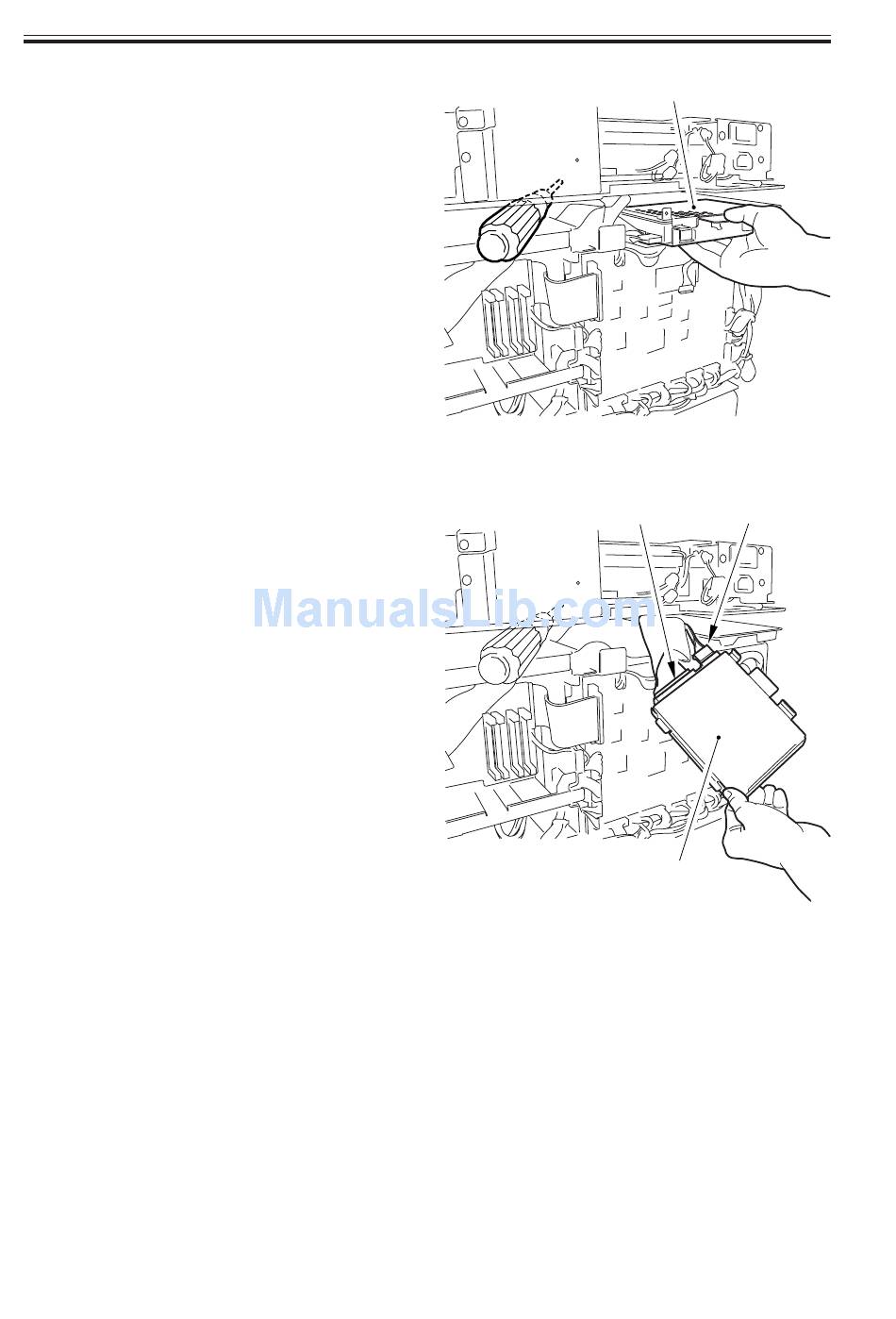

7) Fit the handle of the screwdriver be-
tween the reader unit and the printer
unit; then, lift the reader unit, and take
out the hard disk unit [4].
8) Disconnect the connector [5] and the
flat cable [7]; then, detach the hard disk
unit [4].
