1.4.2 Indicating the Level of Paper on the Deck Front Cover
The drive of the deck lifter motor (M102) is received by a coupling, and is then transmit-
ted to the rack through a drive belt. The rack is equipped with a black belt, moving up and
down within the display window in the deck front cover in keeping with the movement of
the rack.
When the level of paper decreases and, as a result, the lifter moves to pickup position, the
area of the black belt within the display window increases, while the area of white (indicat-
ing the amount of paper) decreases, enabling a check on the level of paper.

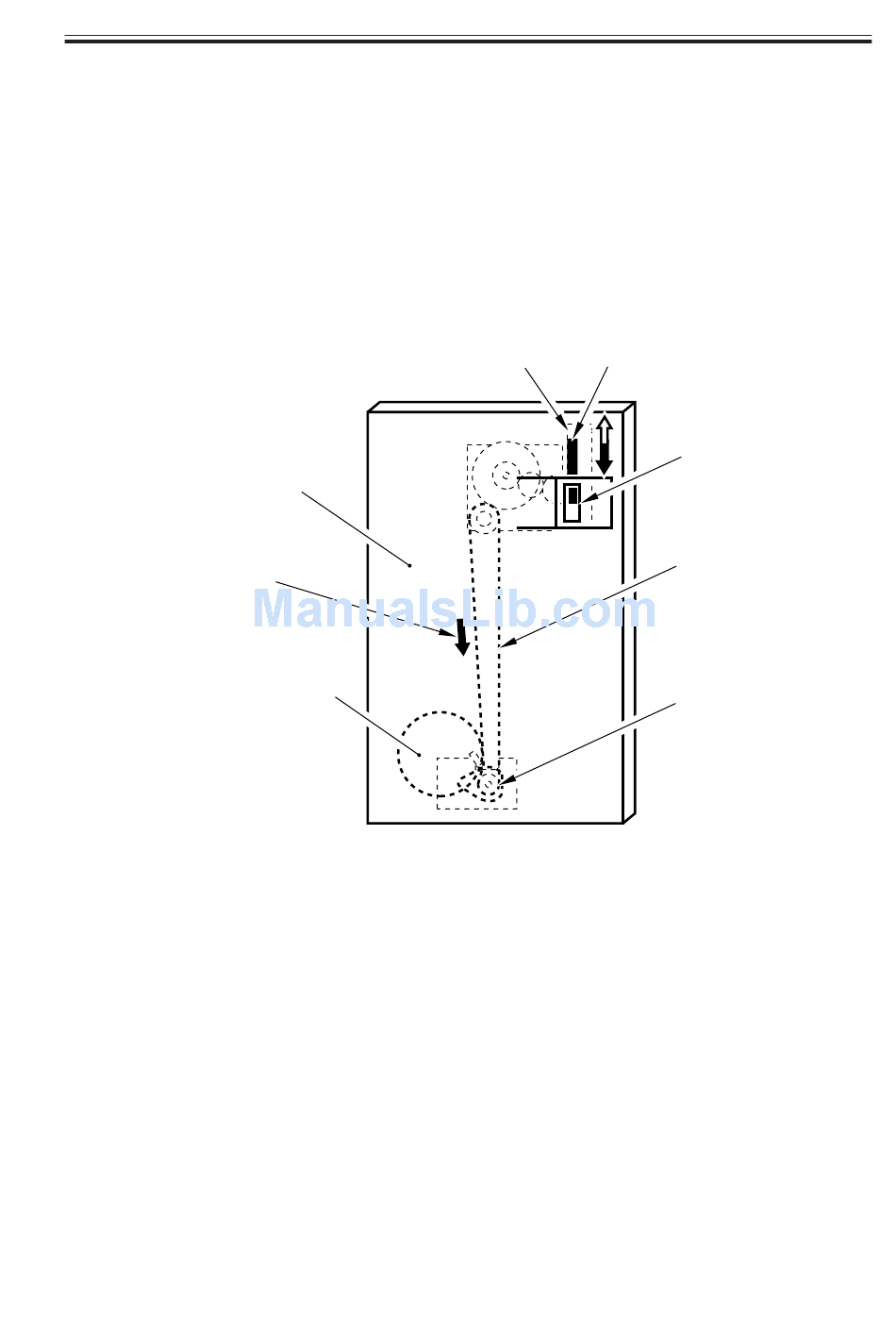

Deck front cover
The lifter moves down,
and the level of paper
(white area) increases.
Deck lifter motor
COPYRIGHT © 2001 CANON INC.
M102
F08-104-02
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 8 PAPER DECK
Rack
Black belt
Drive belt
Coupling
Display window
