6) Fully tighten the two screws of the lifter
motor M20 (M21).
7) Mount back the removed parts, and turn
on the machine.
8) Press the cassette release button under
the following conditions, and turn on
the machine:
• the cassette contains no paper.
• the cassette contains about 550 sheets of
paper.

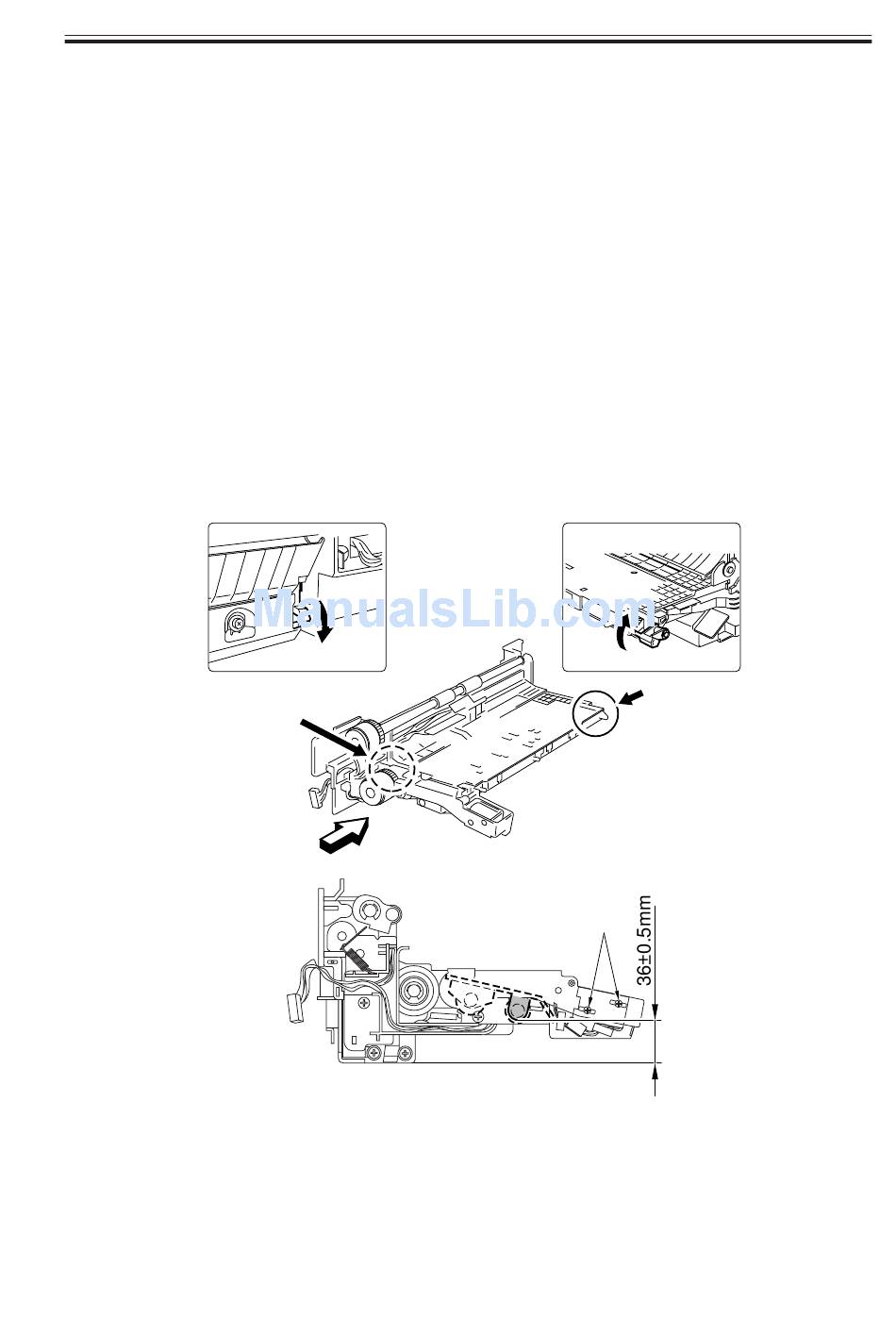

9.2.15 Adjusting the Position of the Cassette 3/4 Pickup Solenoid (SL3, 4)

Adjust the position of the solenoid using the two screws [3] so that the distance from the
bottom of the pickup assembly to section A of the roller arm is 36±0.5 mm when [1] and [2]
are operated as shown.
[2]
COPYRIGHT © 2001 CANON INC.
[2]
A
F05-902-25
2000 2000 2000 2000 CANON iR5000i/iR6000i REV.0 JUNE 2001
CHAPTER 5 PICK UP/FEEDING SYSTEM
[1]
[3]
Viewed from A
[1]
5-63 P
