3) Adjust the left/right registration adjusting
plate so that the horizontal registration is
2.0± 15. mm in reference to the image.

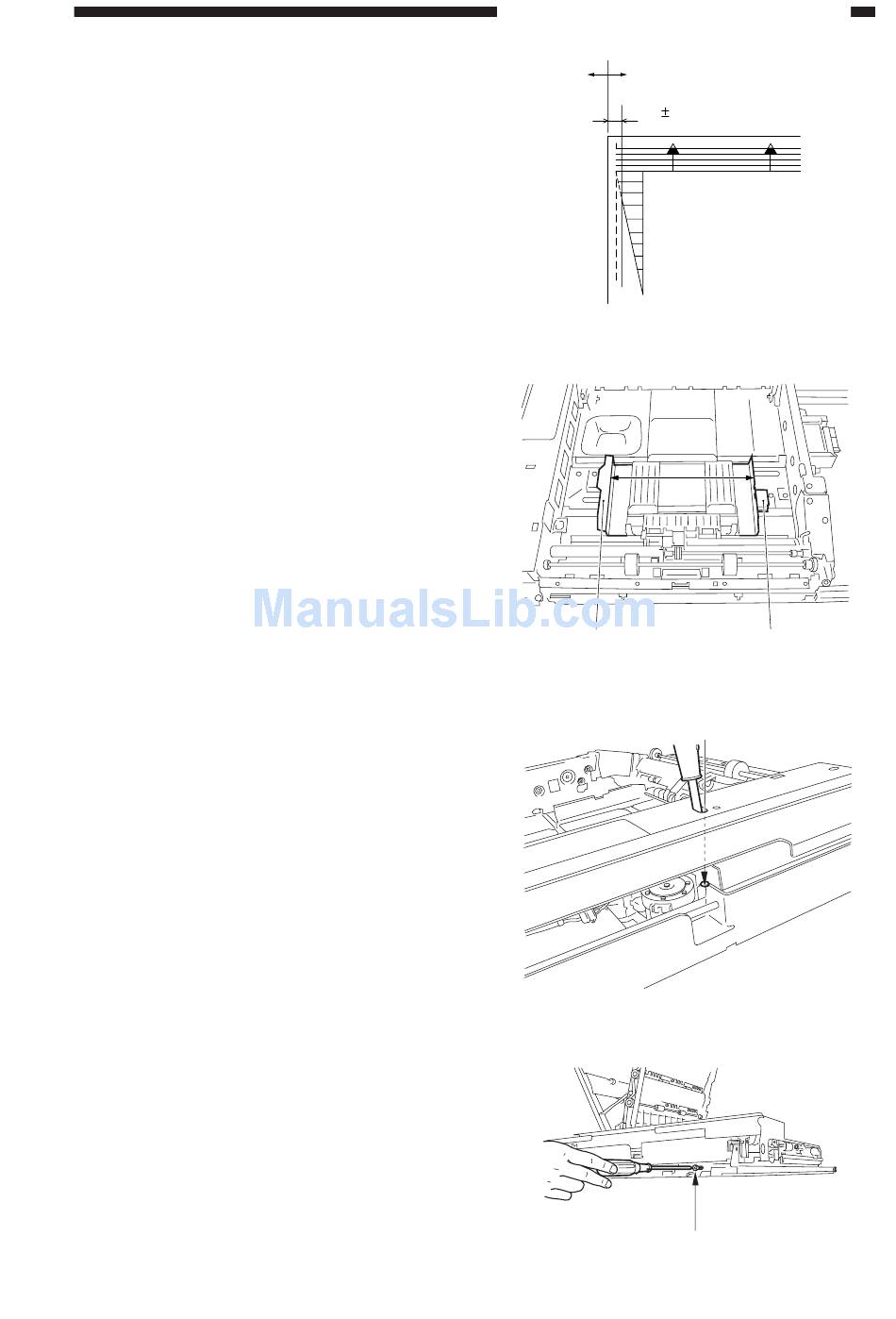

5. Adjusting the Position of the Paper
Jogging Guide Sensor (PS40)
1) Select A4R or LTRR, and complete
copying on the first side of a double-sided
copy.
2) Slide out the duplexing unit.
3) Measure the distance L of the paper

jogging guide plate [1].

A4R: L = 210 ±0.3 mm
LTRR: L = 216 ±0.3 mm
4) If the distance is not as indicated, remove
the duplexing cover.
5) Loosen the screw [2].
6) Using the screw [3], adjust the position of
the paper jogging sensor.
COPYRIGHT © 1999 CANON INC. CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 7 PICK-UP / FEEDING SYSTEM
2.0 1.5mm
0
2
4
6
8
10
Figure 7-756
[1]
Figure 7-757
Figure 7-758
Figure 7-759
[L]
[1]
[2]
[1]
7-69
