14) Fit the developer supply funnel that comes
with the copier to the developing
assembly upright.
15) Put the developer into the developing
assembly.
· Turn the developer container slowly
while tilting it to facilitate the work.
16) When done, press the Stop key to stop the
operation.
17) Execute STIR-Y/M/C/K in service mode
(about 10 min).
18) Execute INIT-Y/M/C/K in service mode
(about 10 min).
19) Select ADJUST>DENS in service mode.
20) Record the data of the DENS screen on
the service label.
Points to Note about the Pre-
6
Cleaning Sensor
If you have removed or replaced the pre-
cleaning sensor assembly, perform the
following:
1) Dry wipe the window of the pre-cleaning
sensor, and mount it.
2) Turn on the power switch, and keep the
copier in standby state.
3) Select and execute FUNCTION>SENS-
ADJ>CLN-OFST in service mode.
4) Record the settings of ADJUST>SENS-
ADJ>CLN-TH, CLN-TMP in service
mode to the service label behind the front
right door.
Points to Note about the Black
7
Toner Concentration Sensor
If you have dry wiped the window of the
black toner concentration sensor, select and
execute FUNCTION>INSTALL>INIT-D
after mounting it.
COPYRIGHT © 1999 CANON INC. CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 13 TROUBLESHOOTING

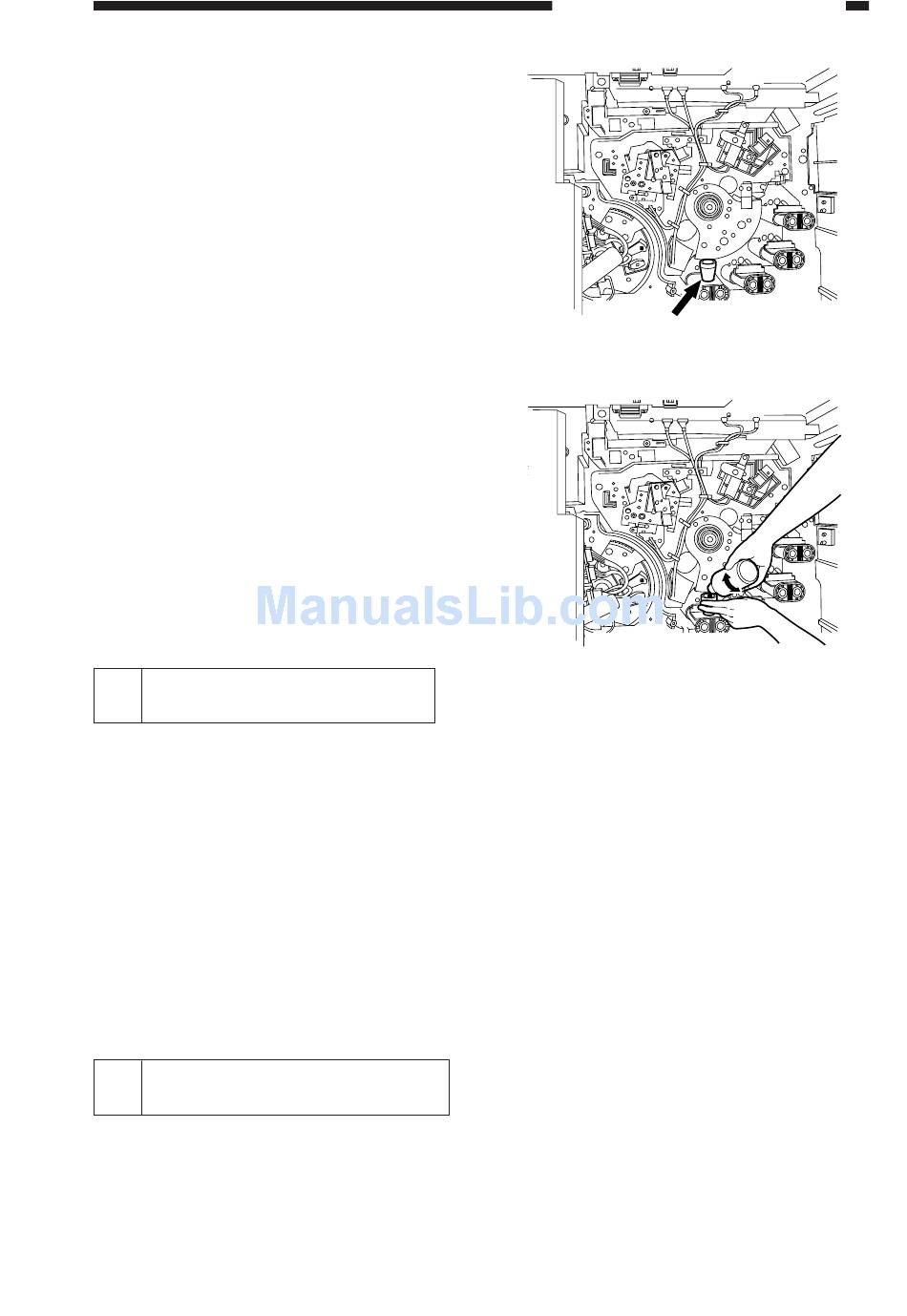

Figure 13-223
