CHAPTER 1 GENERAL DESCRIPTION
IV. USING THE COPIER
A. Control Panel
[1] [2]
Display Contrast
Counter Check
[1] Clip tray
[2] Display contrast dial
[3] Counter check key
[4] Touch panel display
[5] ACS key
[6] Full Color key
[7] Black key
[8] Original Recognition
[9] Center Shift key
[10] Energy Saver key
1-12
COPYRIGHT © 1999 CANON INC.
[3] [4]
[21] [20] [19] [18]

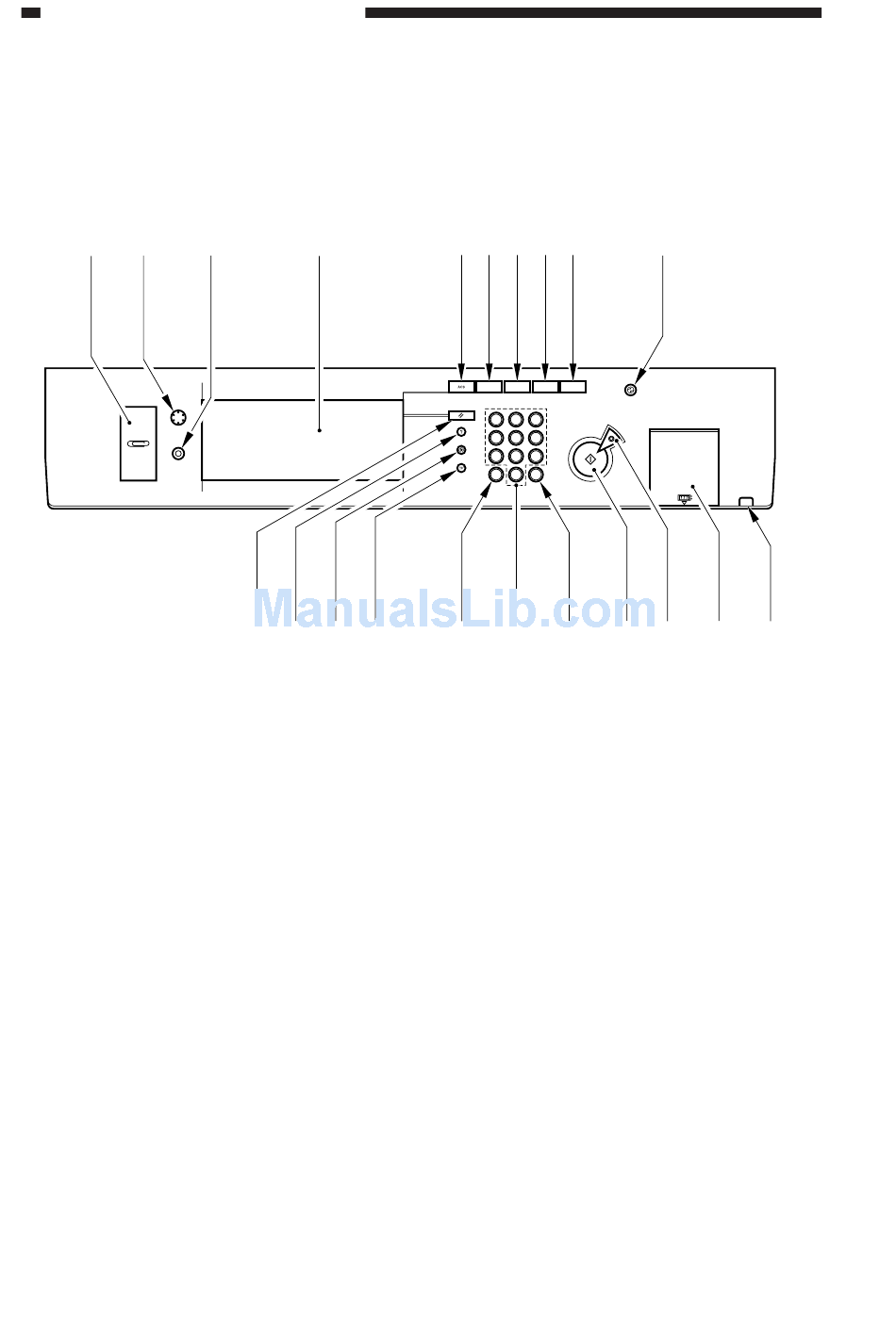

Figure 1-401
[5] [6] [7] [8] [9]
Original
Full Color Black
Recognition
Reset
1 2 3
Guide
4 5 6
????
7 8 9
Interrupt
???? Clear
ID 0 C
[17] [16]
[11] Power lamp
[12] Control card slot (accessory)
[13] Stop key
[14] Start key
[15] Clear key
[16] Numeric keys
[17] ID key
[18] Interrupt key
[19] Additional Functions key
[20] Guide key
[21] Reset key
