CHAPTER 11 INSTALLATION

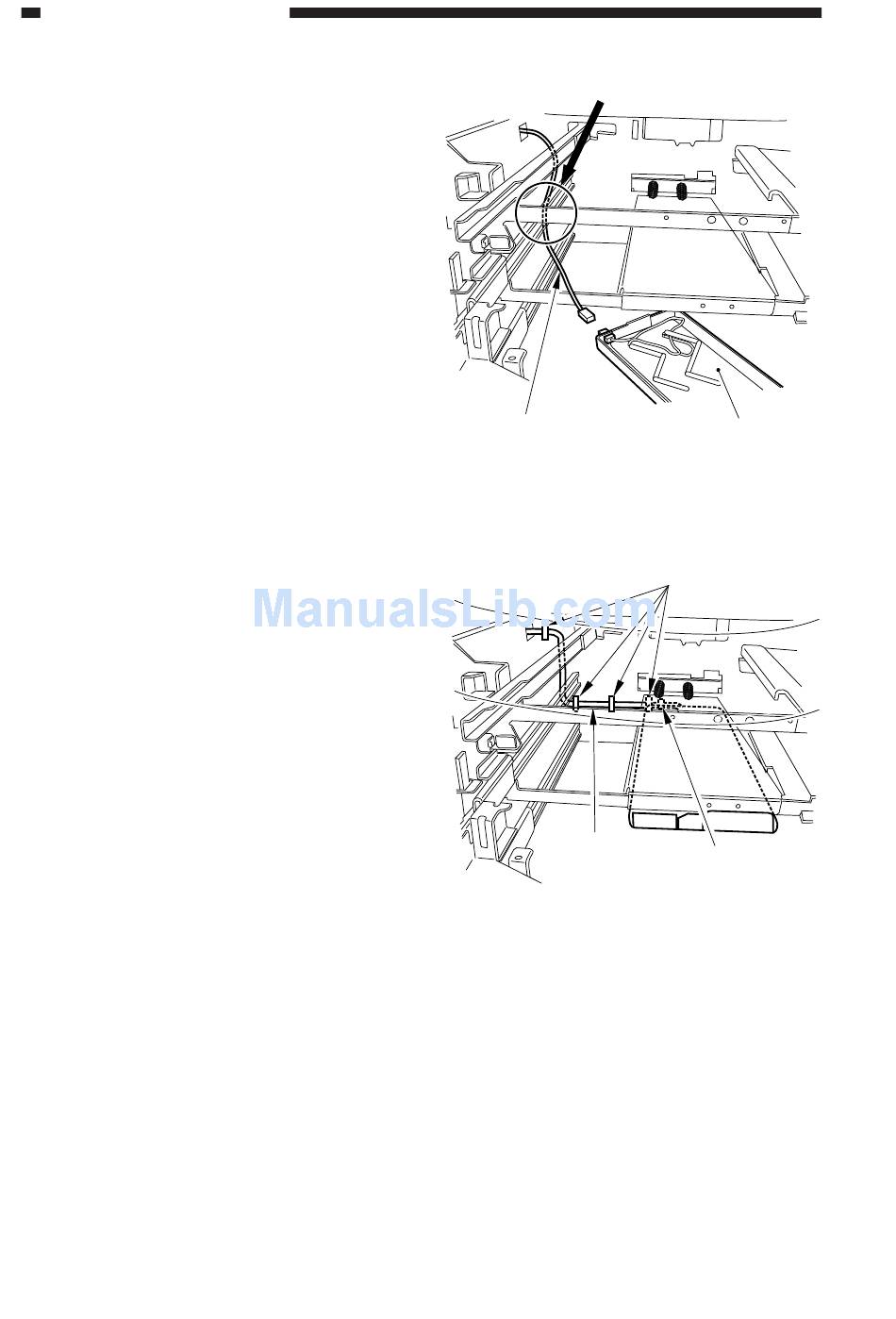

7) Lead the relay harness outside the rail of
the cassette as shown, and connect its 3-pin
end to the connector of the cassette heater.
8) Secure the relay harness in place with the
guides. (Be sure to fix it in place at four
locations and that its band position is to
the right of the cable guides as shown.)
11-58
COPYRIGHT © 1999 CANON INC.
Route outside the rail.
Relay harness
CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
Cassette heater
Figure 11-806
Cable guides
Relay harness
Band
Figure 11-807
