C. Zero-Adjustment of Input Coordinates
If you have replaced the editor controller PCB or the tablet, be sure to set the DIP switch on the
controller PCB according to the label attached to the cable of the tablet (Figure 9-603 and -604).
If a discrepancy still exists after setting the DIP switch, execute EDITOR>ADJUST>EDADJ-
X,Y in service mode.
COPYRIGHT © 1999 CANON INC.
CHAPTER 9 EXTERNALS / AUXILIARY MECHANISMS
Tablet
Label

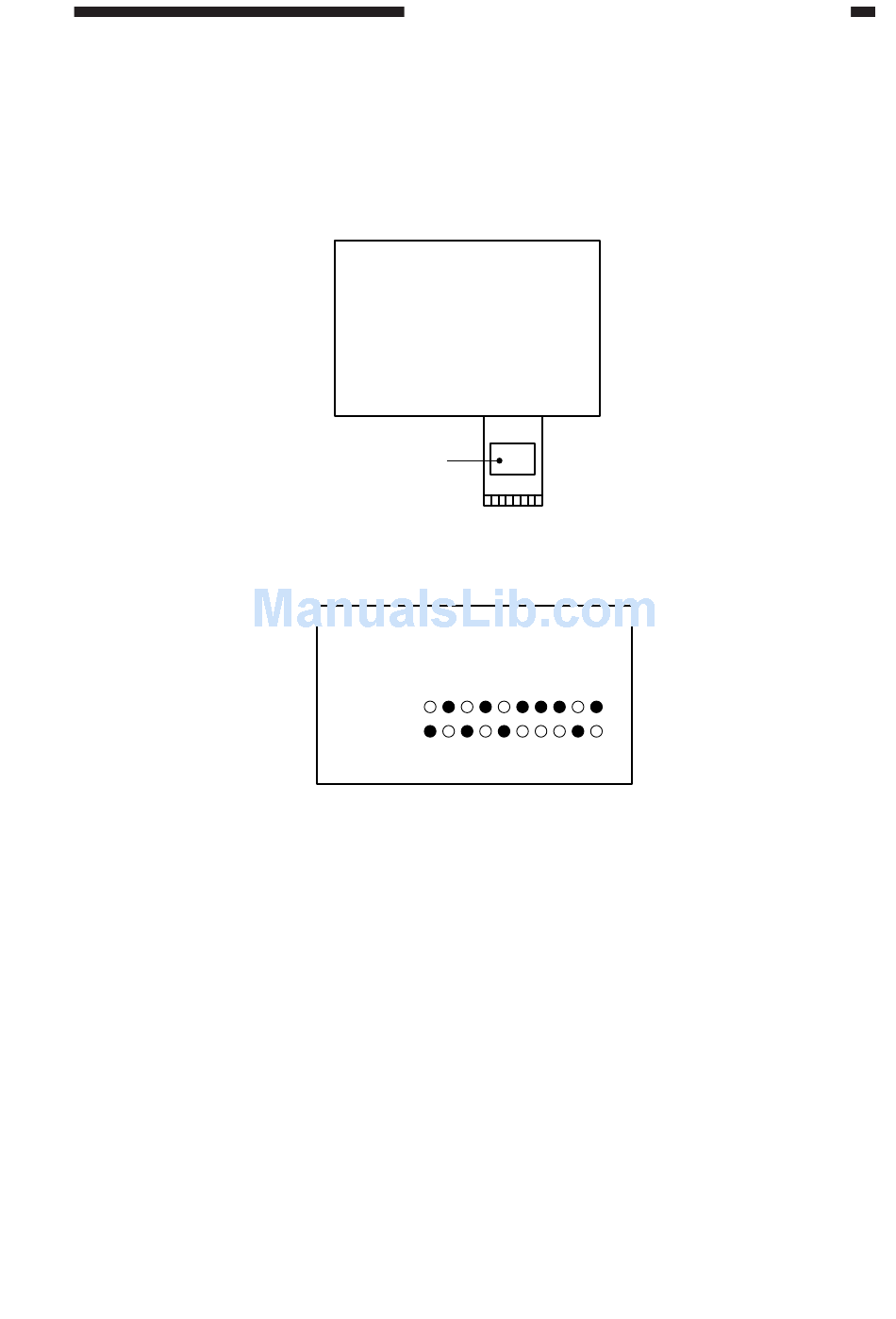

Figure 9-603
