CHAPTER 6 IMAGE FORMATION SYSTEM

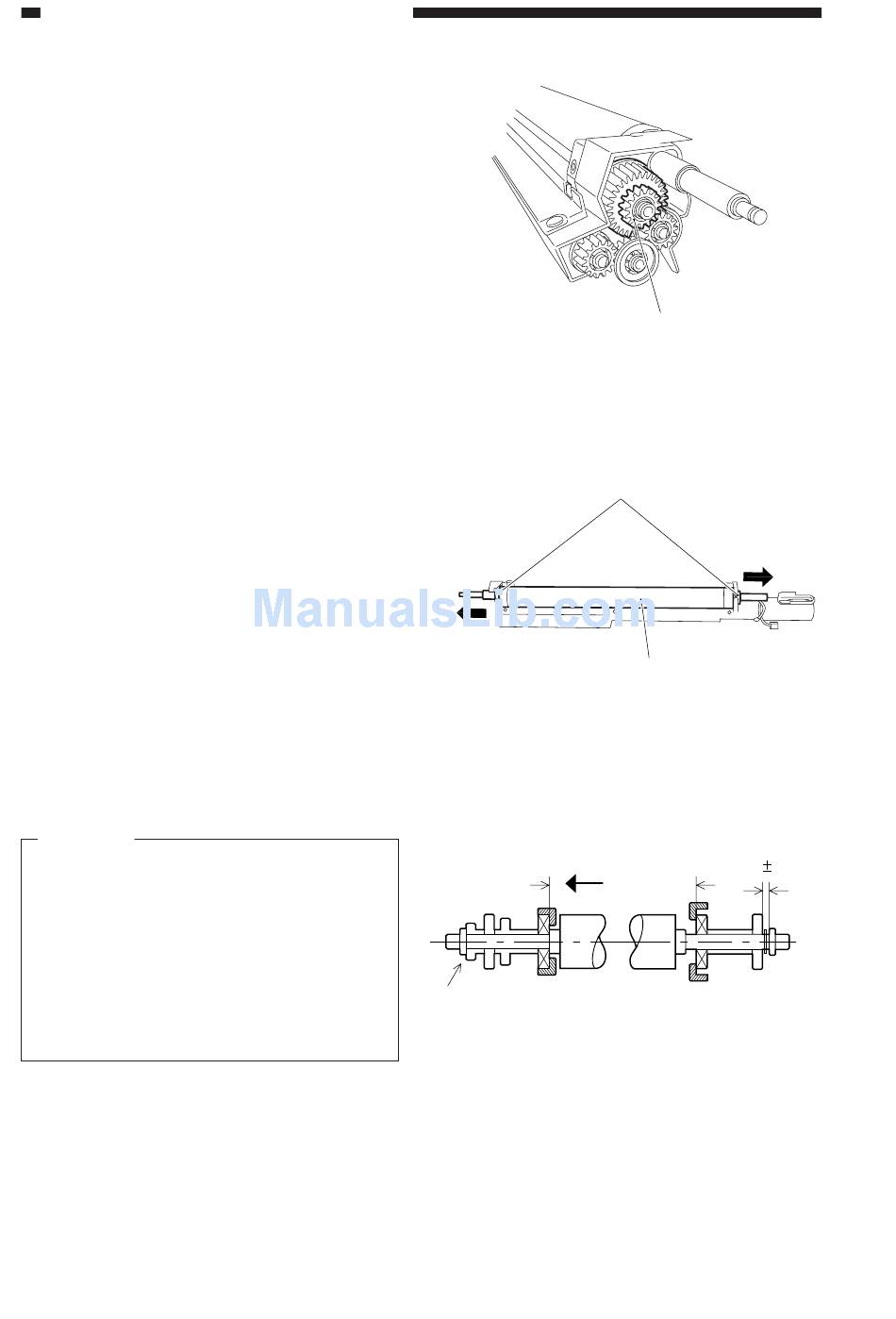

11) Remove the gear [23].
12) Shift the bearings [24] found on both ends
of the developing cylinder in the direction
of the arrow, and pull off the cylinder
[25].
Caution:
While butting the bearing against the
wall X1 of the case, force the sleeve in
the direction of Y and mount the grip
ring Z1, making sure there is no gap.
In this condition, butt the opposite
bearing against the wall X2 of the case,
and mount the grip ring so that the gap
between the roll and the washer is 0.2
±0.1 mm.
6-70
COPYRIGHT © 1999 CANON INC.
X 1
Z 1
CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
[23]
Figure 6-643
[24]
[25]
Figure 6-644
X 2
Y 0.2 0.1mm
Figure 6-645
