D. Developing Assemblies

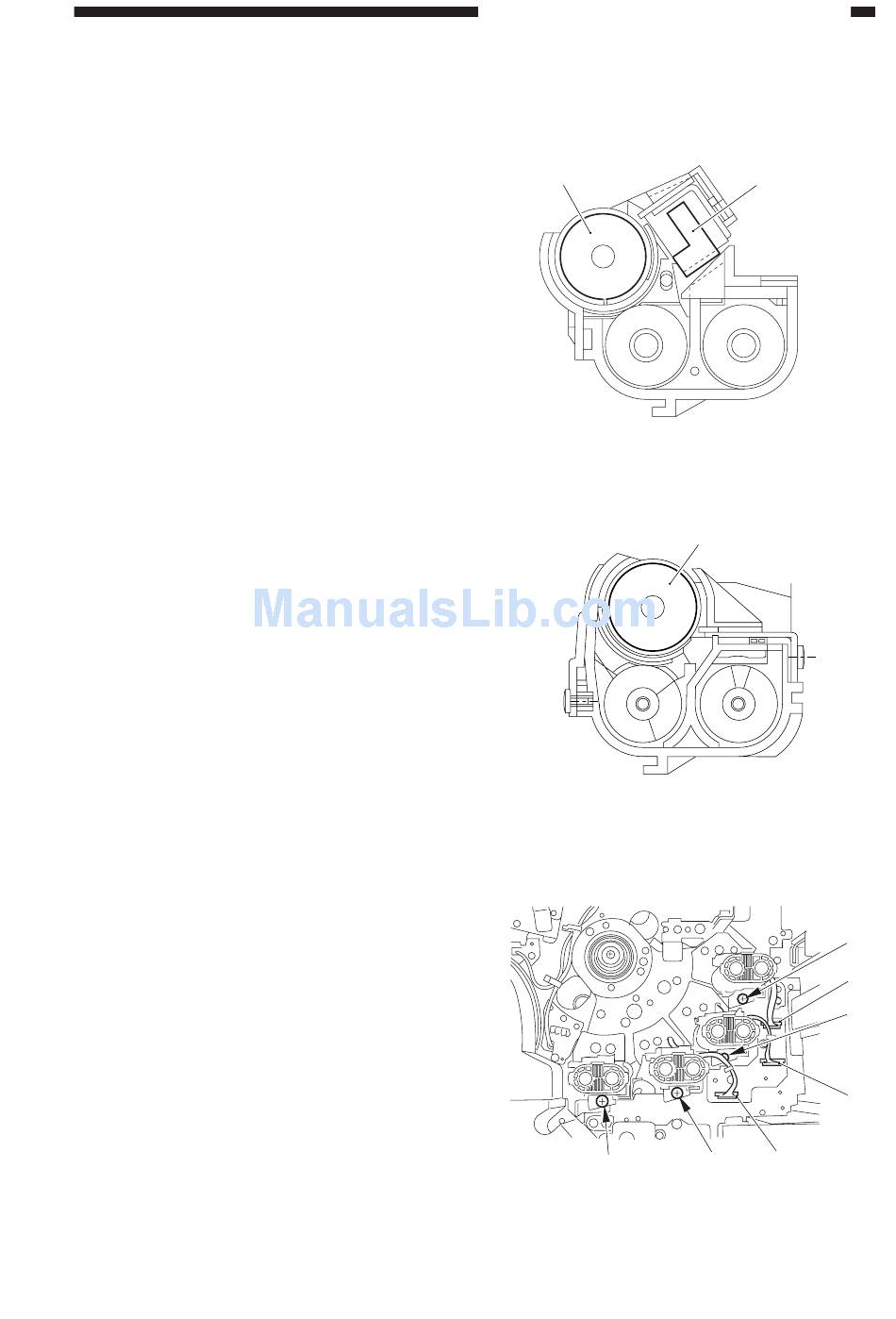

1. Construction of the Y/M/C

Developing Assembly

[1] Developing cylinder
[2] ATR sensor
2. Construction of the Bk Developing

Assembly

[1] Developing cylinder

3. Removing the Developing

Assembly
1) Open the right front cover.
2) Remove the two screws, and detach the
hopper stopper plate; then, open the
hopper fully.
3) Remove the Y/M/C developing assembly.
Remove the screw [1], and disconnect the
connector [2]; then, pull out the
developing assembly slowly.
4) Remove the Bk developing assembly.
Remove the screw [3], and pull out the
developing assembly.
COPYRIGHT © 1999 CANON INC. CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 6 IMAGE FORMATION SYSTEM
[1]
Figure 6-627
Figure 6-628
[3]
Figure 6-629
[2]
[1]
[1]
[2]
[1]
[2]
[1] [2]
6-65
