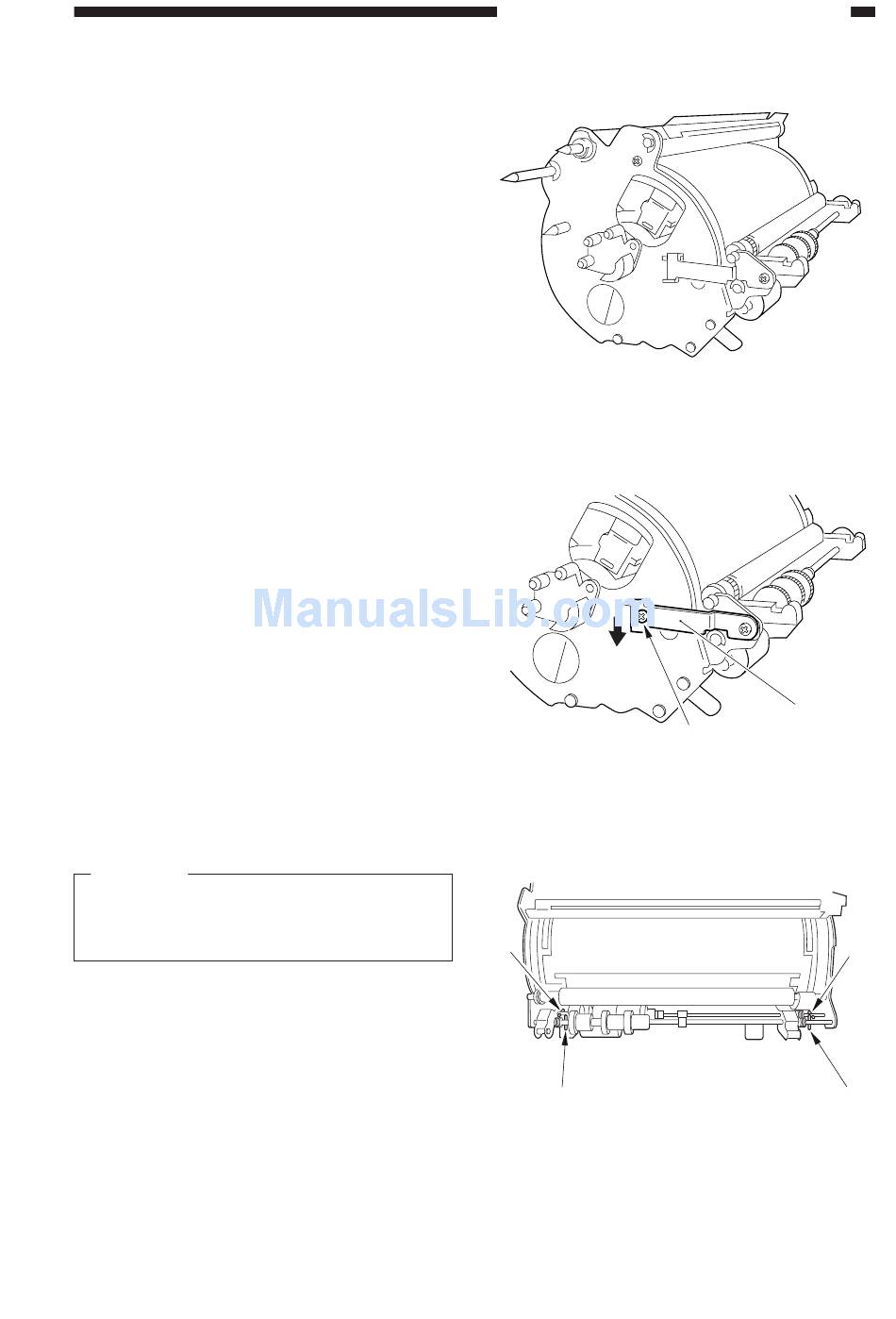

10. Removing the Polishing Roller Unit

1) Remove the transfer drum from the
transfer drum frame.
2) To protect the transfer sheet from
scratches, place the transfer drum unit on
a fault place.
3) Remove the screw [1], and push down the
polishing roller locking lever [2] once;
then, turn it clockwise to free the lock.
Caution:
The four pins [3] used to keep the spring
from turning will slip off when the lock
is freed. Take care not to lose these pins.
COPYRIGHT © 1999 CANON INC. CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 7 PICK-UP / FEEDING SYSTEM
Figure 7-858
Figure 7-859
[3]
[3]
Figure 7-860
[2]
[1]
[3]
[3]
7-95
