CHAPTER 8 FIXING SYSTEM

4. Mounting the Fixing Lower

Cleaning Belt

The feed shaft, take-up shaft, and
cleaning belt (service part) are constructed as
a single entity (service part).
Mount the fixing lower cleaning belt by
reversing the steps used to remove it and with
the following mind:
1) Wind the cleaning belt around the cleaning
belt take-up shaft [1] two to three times.
2) Mount the cleaning belt feed shaft [2] as
shown.
3) Mount the take-up shaft so that the lever
[3] of the fixing lower belt length sensor
is on top of the cleaning belt.
4) Mount the take-up shaft of the cleaning
belt as shown.
5) Operate the cleaning belt feed lever [4] 10
to 20 times to remove the slack of the
cleaning belt completely.
8-24
COPYRIGHT © 1999 CANON INC.

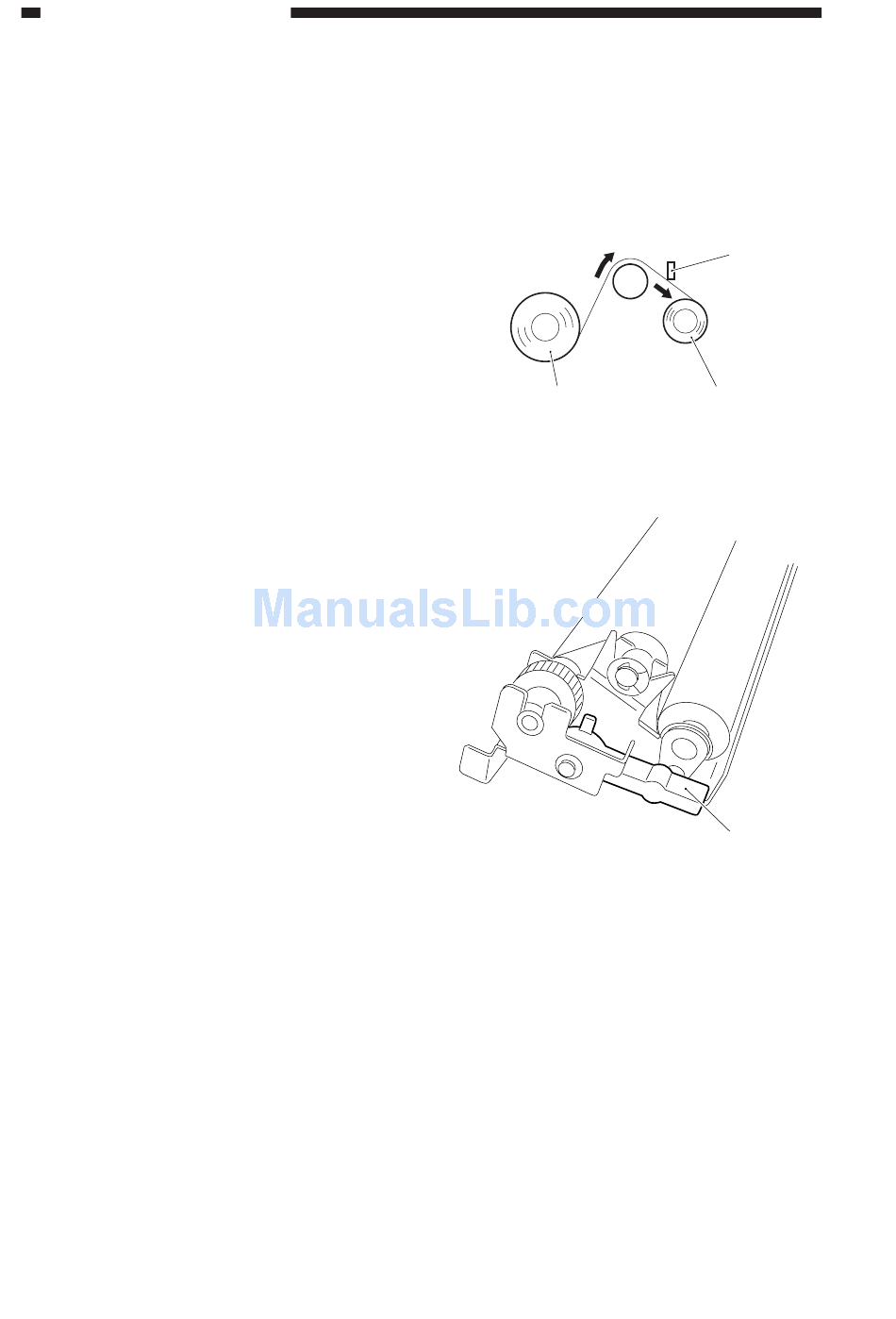

Figure 8-430 (rear view)
