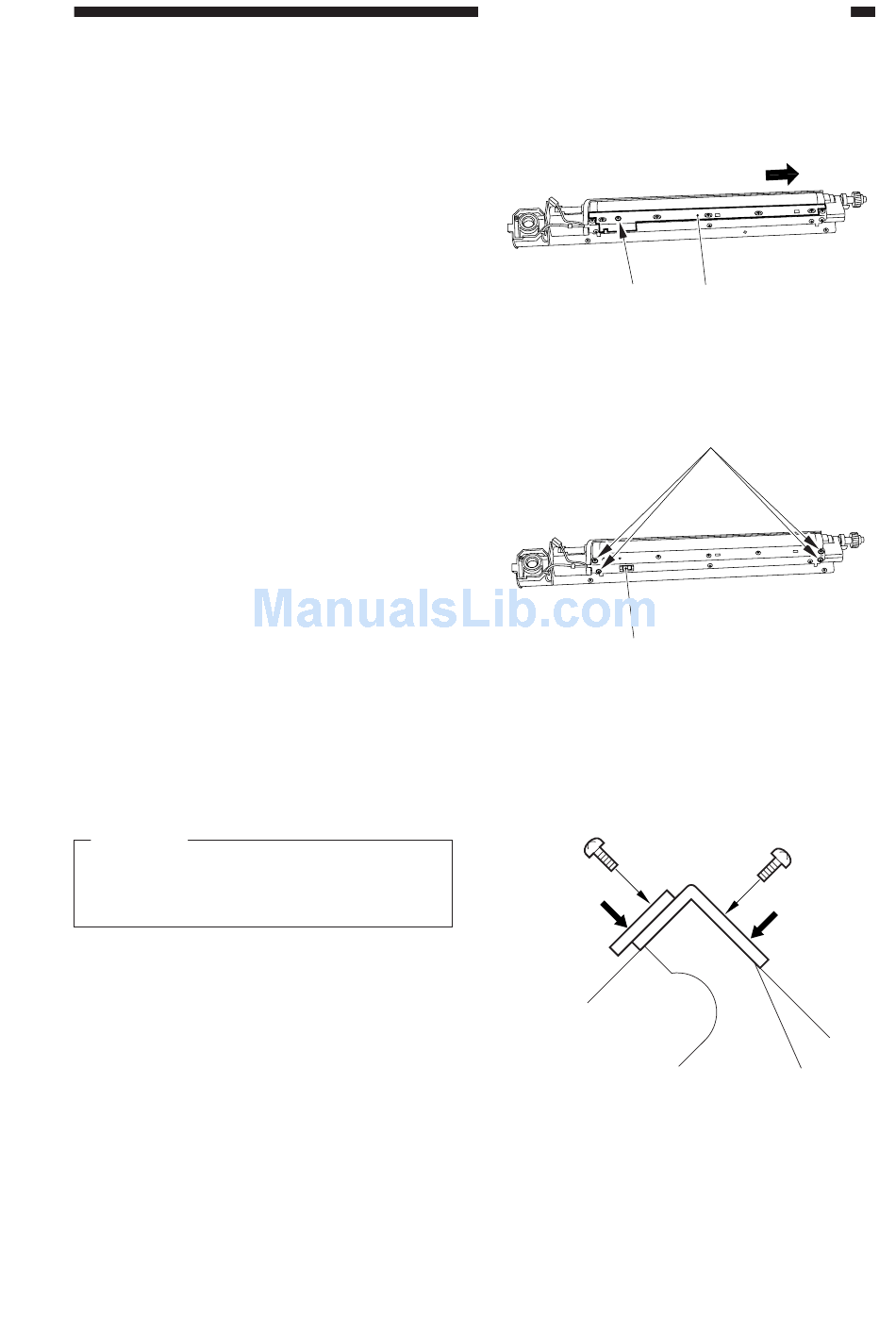

5. Removing the Developing Cylinder

Basically, the same steps are performed
for removal. The following uses the M
developing assembly.
1) Remove the developing assembly.
2) Remove the screw (M3x4) [1], and detach
the developing blade cover [2].
3) Remove the four screws (M3x6) [3], and
disconnect the connector [4]; then,
remove the developing blade unit.
Caution:
When assembling the part, be sure to
force down the developing blade unit,
and screw it in place.
COPYRIGHT © 1999 CANON INC. CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 6 IMAGE FORMATION SYSTEM
[1]
Figure 6-634
[4]
Figure 6-635
Force down.
Figure 6-636
[2]
[3]
Force down.
6-67
