Removing The Duplexing Unit Feed Roller; Removing The Duplex Unit Separation Roller - Canon CLC 1120 Service Manual

CHAPTER 7 PICK-UP / FEEDING SYSTEM
8. Removing the Duplexing Unit Feed
Roller
1) Remove the duplexing pickup assembly.
2) Remove the resin E-ring [1].
3) Remove the feed roller [2].
9. Removing the Duplex Unit
Separation Roller
1) Remove the duplexing pickup assembly.
2) Remove the screw [1], and remove the
face plate [2].
3) Remove the screw [3], and remove the
separation roller assembly [4].
7-56
COPYRIGHT © 1999 CANON INC.
[2]
CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
[1]

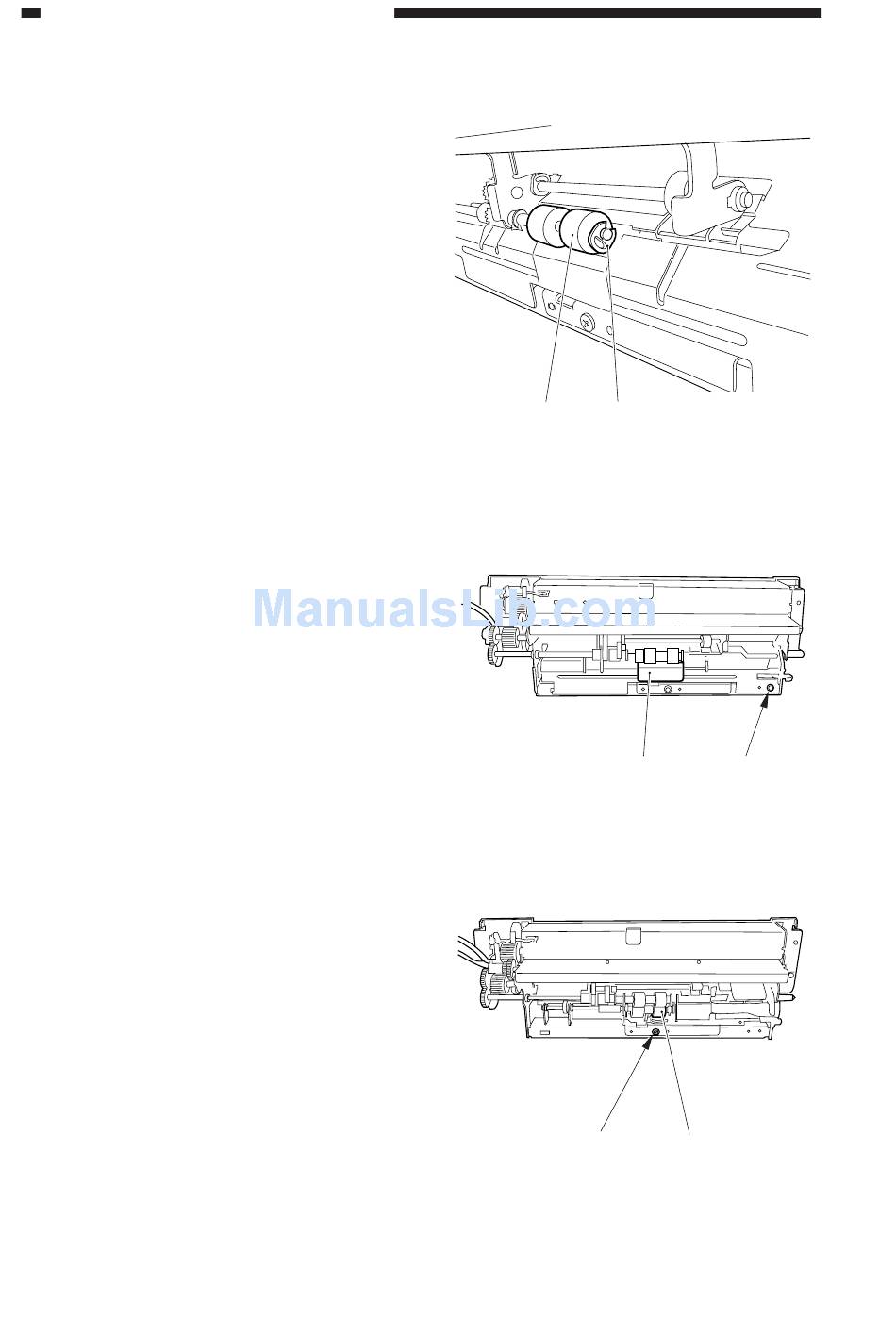

Figure 7-719
