9. Position of the Stacking Guide
Solenoid
Mount the stacking guide solenoid in the
center of the long hole [1] in the solenoid
base. (Be sure to mark the position of the
solenoid with a scriber before removing it.)
COPYRIGHT © 1999 CANON INC. CANON CLC1120/1130/1150 REV.0 MAR. 1999 PRINTED IN JAPAN (IMPRIME AU JAPON)
CHAPTER 7 PICK-UP / FEEDING SYSTEM

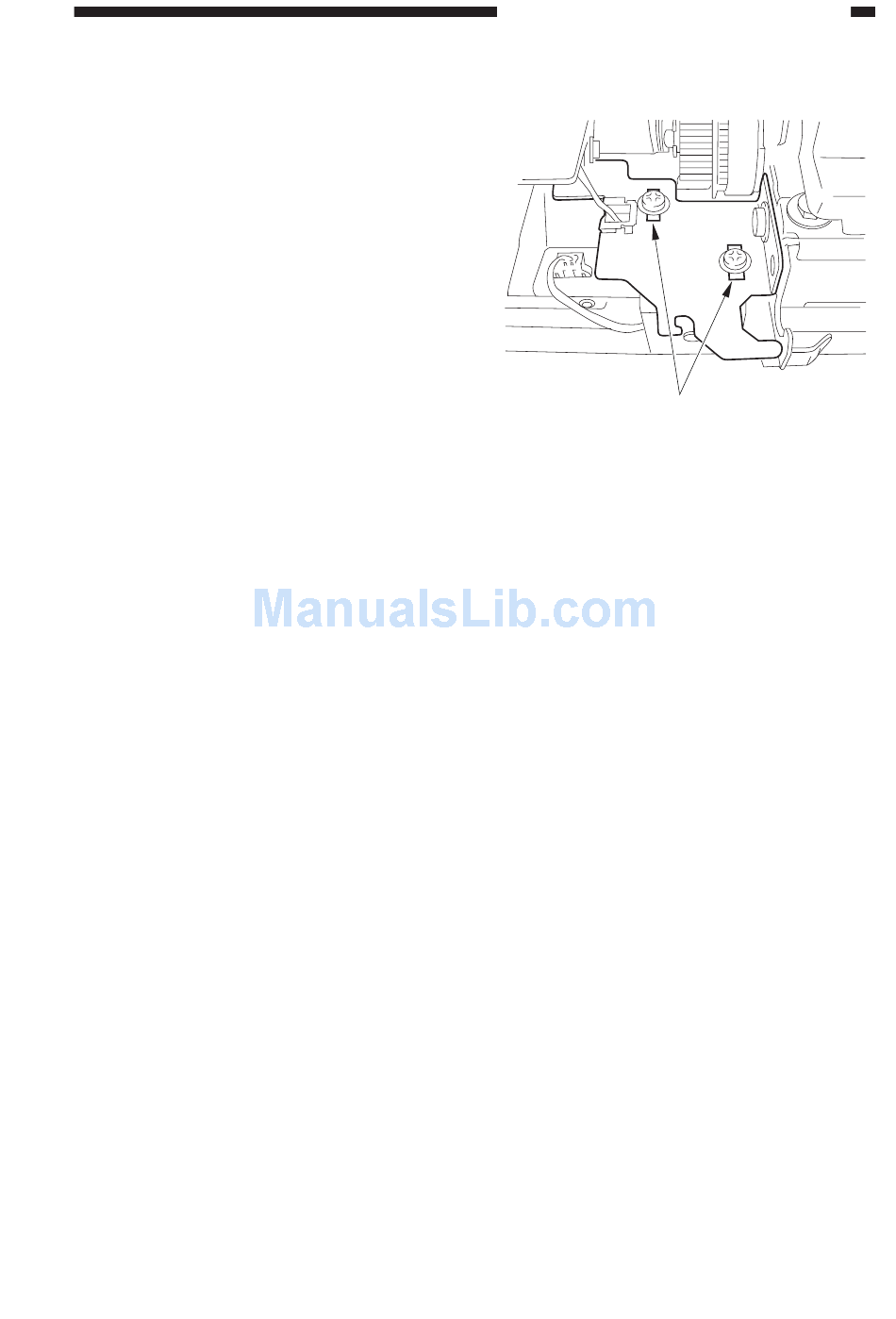

[1]
