CHAPTER 1 GENERAL DESCRIPTION
B. Auxiliary Process

1. Post-Cleaning Charging

The photosensitive drum may become subject to memories because of transfer discharge,
appearing on copy images. To prevent such a problem, a negative DC is applied to the drum thereby
evening out the charges and, consequently, potential.

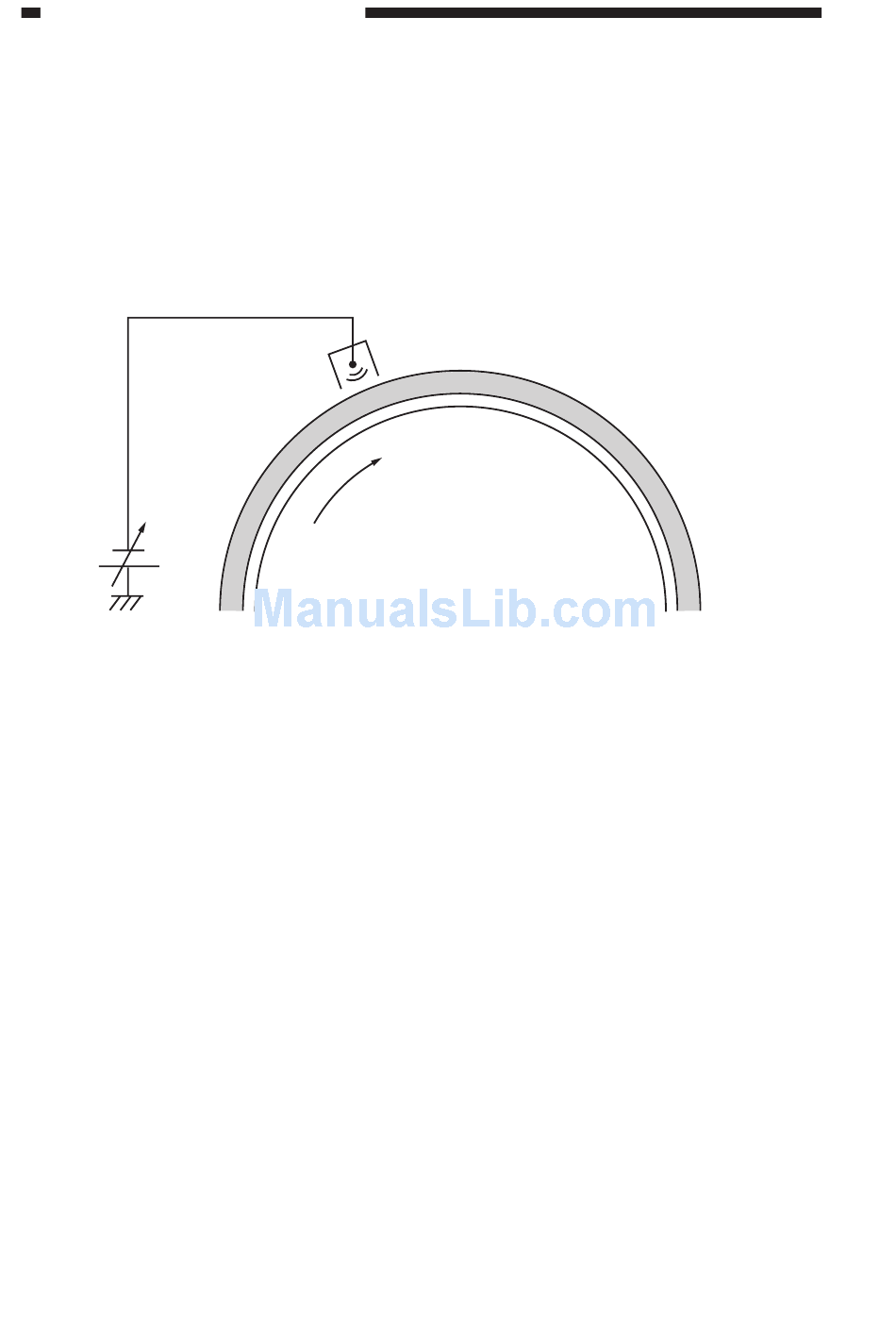

Post-cleaning charging
assembly
1-24
COPYRIGHT © 1999 CANON INC.
Photosensitive drum
Figure 1-703
